Description

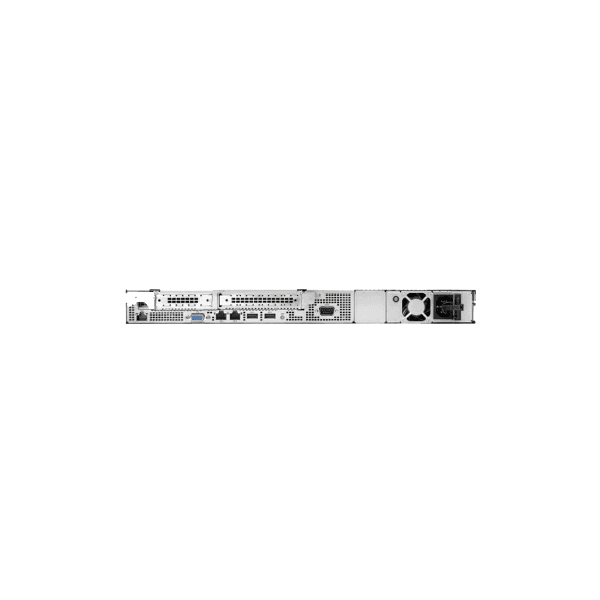

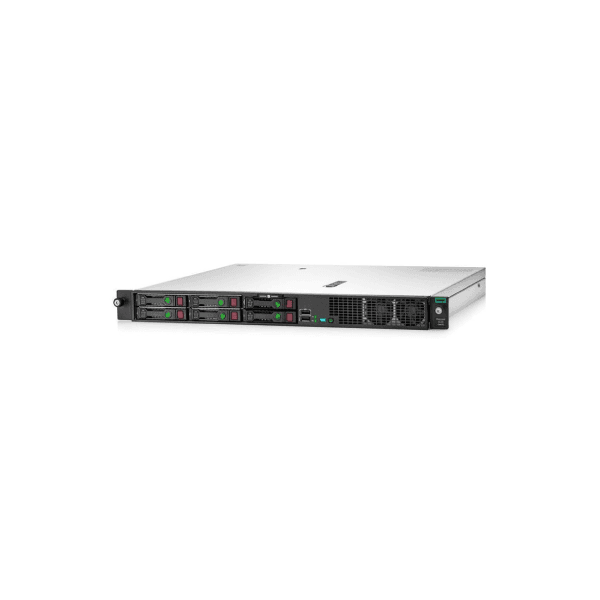

HPE ProLiant DL20 Gen10 4SFF P06478-B21 Overview
P06478-B21 is the HPE ProLiant DL20 Gen10 E-2136 3.3GHz 6-core 1P 16GB-U 4SFF 500W PS Perf Server. The dense and compact HPE ProLiant DL20 Gen10 Server powered by Intel® Xeon® E Processor, Pentium and Core i3 processors provides a unique blend of enterprise class capabilities & value. It offers outstanding configuration flexibility to cater to a wide variety of business requirements at an affordable price point.
Quick Spec
HPE DL380 Gen10 Server
| SKU Number | P06478-B21 |
| Model Name | HPE ProLiant DL20 Gen10 E-2136 3.3GHz 6-core 1P 16GB-U 4SFF 500W PS Perf Server |
| Processor | Intel® Xeon® E-2136 |
| Number of Processors | 1 |
| Memory | 16GB (1x16GB UDIMM, 2666 MHz) |
| Network Controller | HPE embedded 1Gb 2-port 332i network Adapter |
| Storage Controller | Embedded 14-port S100i
NOTE: SATA only |
| Hard Drive | None ship standard |
| Internal Storage | 4 SFF HDD Bays (Hot Plug) |
| Optical Drive Bay | 1; (Optional: DVD-ROM, DVD-RW) |
| Optical Drive | None |
| PCI-Express Slots | 2 PCIe 3.0 slots |
| Power Supply | 1 x 500W |
| Fans | 3 non hot plug, non-redundant |
HPE ProLiant DL20 Gen10 4SFF P06478-B21 Specification
P06478-B21 Specification |
|
| Model Name | HPE ProLiant DL20 Gen10 E-2136 3.3GHz 6-core 1P 16GB-U 4SFF 500W PS Perf Server |
| Processor | Intel® Xeon® E-2136 |
| Number of Processors | 1 |
| Memory | 16GB (1x16GB UDIMM, 2666 MHz) |
| Network Controller | HPE embedded 1Gb 2-port 332i network Adapter |
| Storage Controller | Embedded 14-port S100i
NOTE: SATA only |
| Hard Drive | None ship standard |
| Internal Storage | 4 SFF HDD Bays (Hot Plug) |
| Optical Drive Bay | 1; (Optional: DVD-ROM, DVD-RW) |
| Optical Drive | None |
| PCI-Express Slots | 2 PCIe 3.0 slots |
| Power Supply | 1 x 500W |
| Fans | 3 non hot plug, non-redundant |
| Management | iLO Management (standard), Intelligent Provisioning (standard), iLO Essentials (optional), iLO Scale-out (optional only for DL), iLO Advanced (optional) |
| Form Factor | Rack (1U), HPE Short Friction Rail Kit |
| Dimensions
(Height x Width x Depth) |
SFF Drives:
4.32 x 43.46 x 38.22 cm 1.70 x 17.11 x 15.05 in |
| Altitude | Operating:
3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min). Non-operating: 9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min). |
