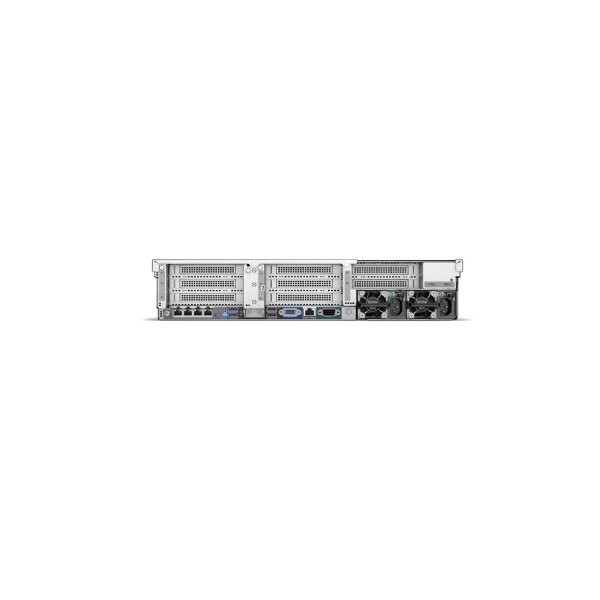

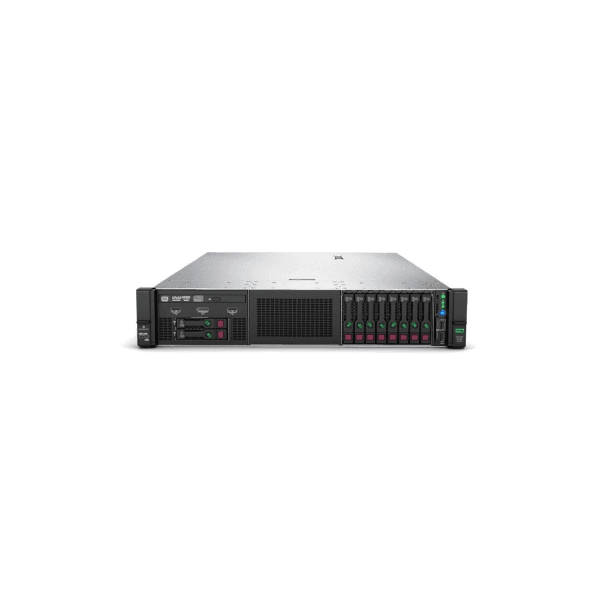

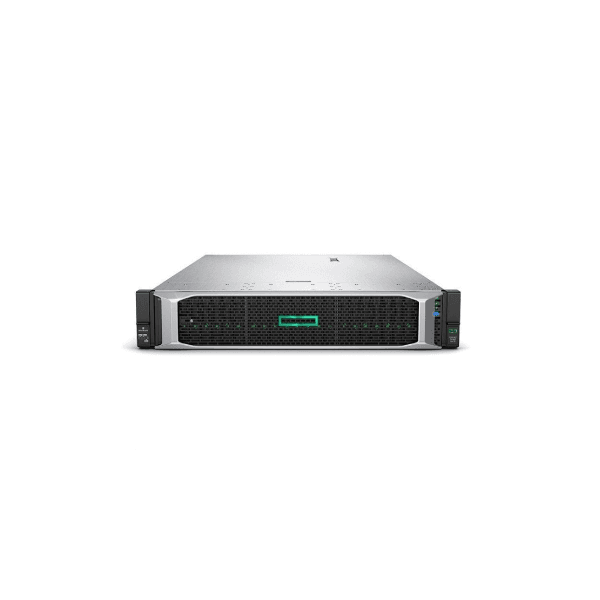

HPE ProLiant DL560 Gen9/10 Servers - P02874-B21
HPE ProLiant DL560 Gen9/10 Servers - P02874-B21 - Image 2
HPE ProLiant DL560 Gen9/10 Servers - P02874-B21 - Image 3

HPE ProLiant DL560 Gen9/10 Servers – P02874-B21

P02874-B21 – HPE ProLiant DL560 Gen9/10 Servers

HPE ProLiant DL560 Gen10 6254 3.1GHz 18-core

4P 256GB-R P408i-a 8SFF 2x1600W RPS Server



Add to quote
Categories: ,

HPE ProLiant DL560 Gen9/10 Servers 6254 3.1GHz Overview

P02874-B21 is the HHPE ProLiant DL560 Gen10 6254 3.1GHz 18-core 4P 256GB-R P408i-a 8SFF 2x1600W RPS Server . HPE ProLiant DL560 Gen10 server is a high-density, 4P server with high-performance, scalability, and reliability, in a 2U chassis. Supporting the Intel® Xeon® Scalable processors with up to a 61% performance gain, the HPE ProLiant DL560 Gen10 server offers greater processing power,

Quick Spec

Table 1 shows the quick spec.

ModelP02874-B21
DescriptionHPE ProLiant DL560 Gen10 6254 3.1GHz 18-core 4P 256GB-R P408i-a 8SFF 2x1600W RPS Server
Processor NameIntel® Xeon® Scalable 6254 (18 core, 3.1 GHz, 24.75 MB, 200W)
Processor number4 processors included
Maximum memory1.5 TB
Memory slots24 DIMM slots
Memory typeHPE DDR4 SmartMemory
Minimum dimensions (H x W x D)8.75 x 44.55 x 75.47 cm



HPE DL560 Gen10 8SFF P02874-B21 Specification



P02874-B21 Specification

Model NameHPE ProLiant DL560 Gen10 6254 3.1GHz 18-core 4P 256GB-R P408i-a 8SFF 2x1600W RPS Server
ProcessorIntel® Xeon® 6254

(18-Core, 3.1GHz, 200W)

Number of Processors4
Memory256 GB
NOTE: 24 DIMM slots available with Entry Model; 2 more processor slots and 24 more DIMMs available via optional HPE DL5x0 Gen10 CPU Mezzanine Board Kit (872222-B21).
Storage ControllerHPE Smart Array P408i-a
Power Supply2x 1600W
NOTE: 1600W Power supplies only support high line voltage (200VAC to 240VAC).
PCI-Express Slots3 PCIe 3.0 slots available

NOTE: 8 PCIe 3.0 slots available with the secondary and tertiary riser installed.

Hard driveNone shipped as Standard
Internal Storage8 SFF Drive Bays

NOTE: Can be expanded up to a max of 24 SFF drives, with optional HPE DL560 Gen10 8SFF HDD Bay2 Kit (872235-B21) and HPE DL560 Gen10 8 SFF HDD Bay1 Kit (872231-B21).

NOTE: Optionally NVMe SSD drives can be added with HPE DL560 Gen10 Premium 6SFF and 2 NVMe or 8 SFF Bay1 Kit (872227-B21) or HPE DL560 Gen10 Prem 6 SFF+2 NVMe Bay2 Kit(872229-B21) or HPE DL560 Gen10 Premium 6 SFF and 2 NVMe or 8 SFF Bay3 Kit (872231-B21) or HPE DL560 NVMe 8 SSD Express Bay Enablement Kit (872225-B21).

NOTE: Alternatively, optional HPE DL560 Gen10 Universal Media Bay Kit.

Optical Drive BayOptional via Universal Media Bay
Optical DriveOptional via Universal Media Bay
Fans6 hot plug fans, redundant
ManagementHPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced and HPE OneView Advanced (require licenses)
Form FactorRACK (2U), HPE Easy Install Rails with CMA
