Description

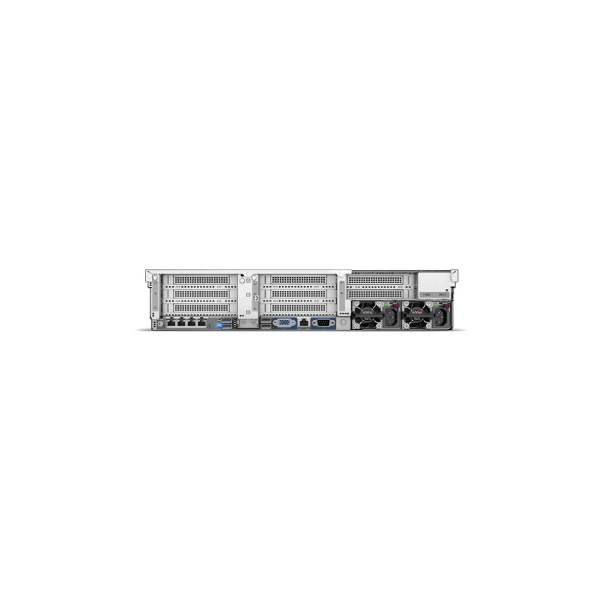

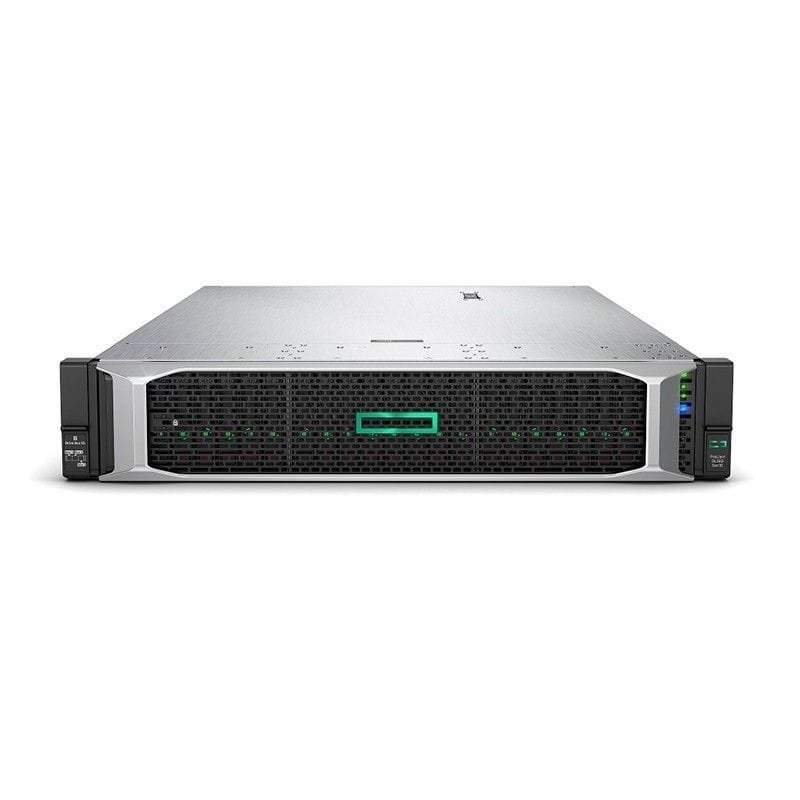

HPE ProLiant DL560 Gen10 8SFF P02872-B21 Overview
P02872-B21 is the HPE ProLiant DL560 Gen10 5220 2.2GHz 18core 2P 64GB-R P408i-a 8SFF 2x1600W RPS Server. HPE ProLiant DL560 Gen10 server is a high-density, 4P server with high-performance, scalability, and reliability, in a 2U chassis. Supporting the Intel® Xeon® Scalable processors with up to a 61% performance gain, the HPE ProLiant DL560 Gen10 server offers greater processing power,
Quick Spec
| Model | P02872-B21 |
| Description | HPE ProLiant DL560 Gen10 5220 2.2GHz 18core 2P 64GB-R P408i-a 8SFF 2x1600W RPS Server |
| Processor Name | Intel® Xeon® Scalable 5220 (18 core, 2.2 GHz, 24.75 MB, 125W) |
| Processor number | 2 processors included |
| Maximum memory | 1.5 TB |
| Memory slots | 24 DIMM slots |
| Memory type | HPE DDR4 SmartMemory |
| Minimum dimensions (H x W x D) | 8.75 x 44.55 x 75.47 cm |
HPE ProLiant DL560 Gen10 8SFF P02872-B21 Specification
P02872-B21 Specification |
|
| Model Name | HPE ProLiant DL560 Gen10 5220 2.2GHz 18-core 2P 64GB-R P408i-a 8SFF 2x1600W RPS Server |
| Processor | Intel® Xeon® 5220
(18-Core, 2.2GHz, 125W) |
| Number of Processors | 2 |
| Memory | 64 GB |
| NOTE: 24 DIMM slots available with Entry Model; 2 more processor slots and 24 more DIMMs available via optional HPE DL5x0 Gen10 CPU Mezzanine Board Kit (872222-B21). | |
| Storage Controller | HPE Smart Array P408i-a |
| Power Supply | 2x 1600W |
| NOTE: 1600W Power supplies only support high line voltage (200VAC to 240VAC). | |
| PCI-Express Slots | 3 PCIe 3.0 slots available
NOTE: 8 PCIe 3.0 slots available with the secondary and tertiary riser installed. |
| Hard drive | None shipped as Standard |
| Internal Storage | 8 SFF Drive Bays
NOTE: Can be expanded up to a max of 24 SFF drives, with optional HPE DL560 Gen10 8SFF HDD Bay2 Kit (872235-B21) and HPE DL560 Gen10 8 SFF HDD Bay1 Kit (872231-B21). NOTE: Optionally NVMe SSD drives can be added with HPE DL560 Gen10 Premium 6SFF and 2 NVMe or 8 SFF Bay1 Kit (872227-B21) or HPE DL560 Gen10 Prem 6 SFF+2 NVMe Bay2 Kit(872229-B21) or HPE DL560 Gen10 Premium 6 SFF and 2 NVMe or 8 SFF Bay3 Kit (872231-B21) or HPE DL560 NVMe 8 SSD Express Bay Enablement Kit (872225-B21). NOTE: Alternatively, optional HPE DL560 Gen10 Universal Media Bay Kit. |
| Optical Drive Bay | Optional via Universal Media Bay |
| Optical Drive | Optional via Universal Media Bay |
| Fans | 6 hot plug fans, redundant |
| Management | HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced and HPE OneView Advanced (require licenses) |
| Form Factor | RACK (2U), HPE Easy Install Rails with CMA |
