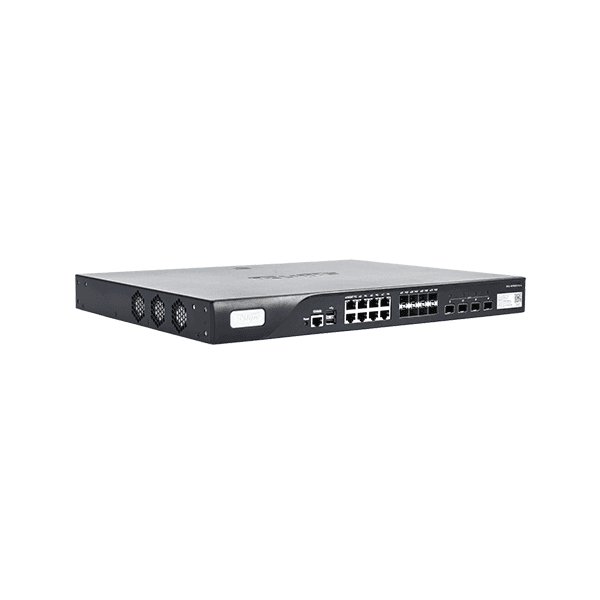

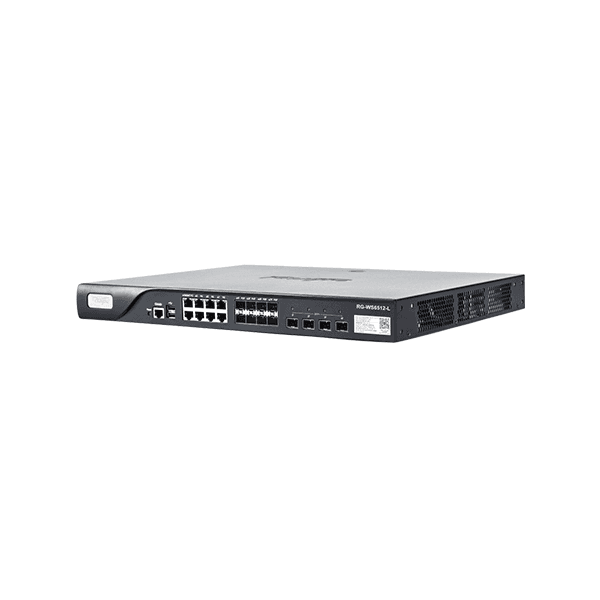

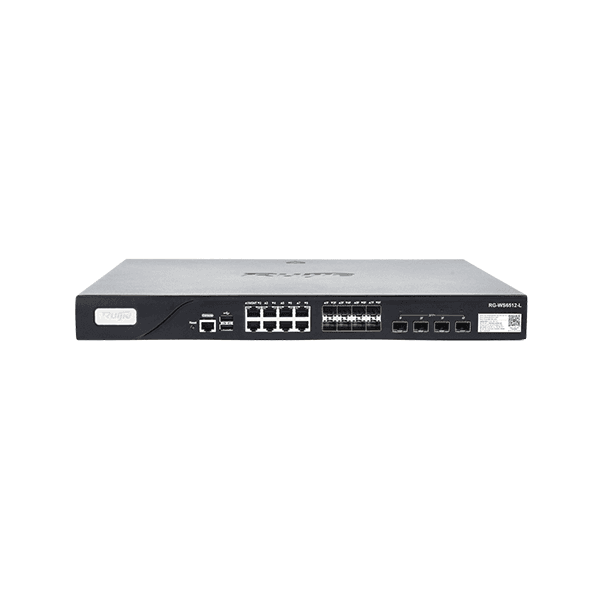

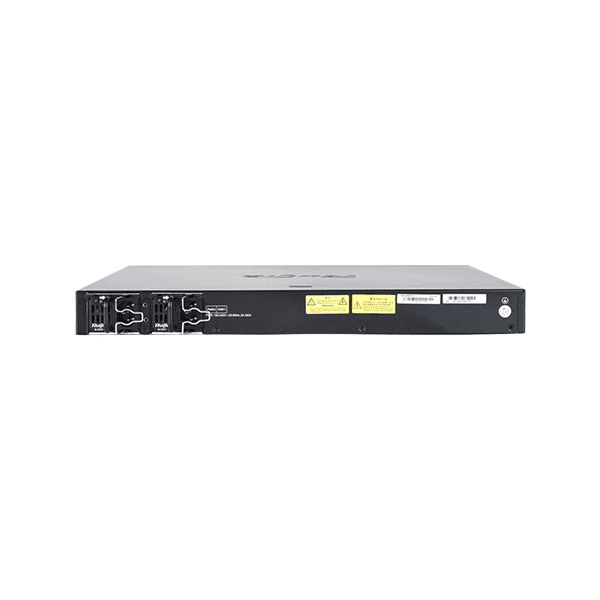

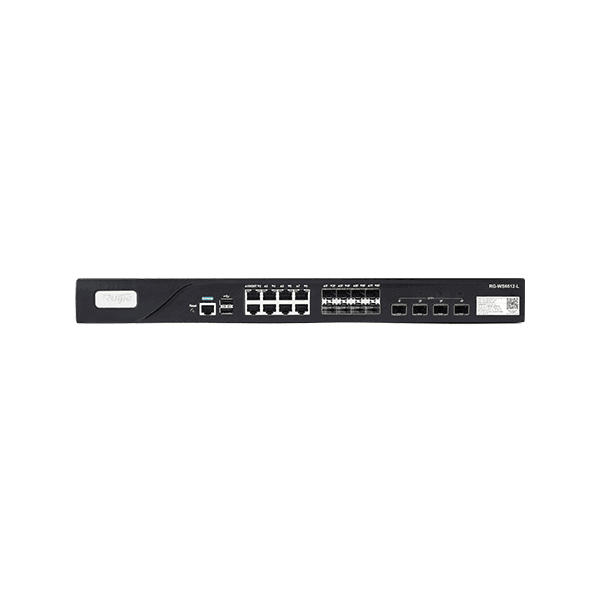

RG-WS6512-L, High-Performance Large Campus Wireless Access Controller
Medium to large networks, government, general education, medical care, enterprises, etc
Highlight Features
- Layered management and control for large networks
- Switching between centralized and local forwarding
- Load balancing between APs, dynamic bandwidth allocation for STAs, 5G band-select, smooth network connection
- Ruijie cloud management, intelligent optimization
Ruijie RG-WS6512-L Specifications
| Dimensions and Weight | RG-WS6512-L |
| Unit dimensions (W x D x H) | 440 mm x 340 mm x 43.6 mm (17.32 in. x 13.39 in. x 1.72 in.) |
| Shipping dimensions(W x D x H) | 630 mm x 335 mm x 500 mm (24.8 in. x 13.19 in. x 19.69 in.) |
| Rack height | 1 RU |
| Unit weight | Main unit: 5.9 kg (13.01 lbs) Power module: 0.4 kg (0.88 lbs) A power module is delivered with the main unit. |
| Shipping weight | 14.50 kg (31.97 lbs) |
| Port specifications | RG-WS6512-L |
| Fixed service port | 8 x GE combo ports , when the combo port is used as an electrical port, ● Port 1 can be used as an out-of-band management port (MGMT). ● It supports 10/100/1000Base-T auto-negotiation. ● It supports Auto MDI/MDIX crossover. 4 x 10GE SFP + ports |
| Fixed management port | 1 x RJ45 console port 2 x USB ports |
| Status LED | 1 x system status LED 20 x service port LEDs |
| Button | 1 x Reset button ● Press the button for shorter than 3 seconds. Then the device restarts. ● Press the button for longer than 3 seconds. Then the device restores to factory settings. |
| Power Supply and Consumption | RG-WS6512-L |
| Maximum power consumption | 70 W |
| Input power supply | 2 x RG-PA70I 70 W AC power modules A power module is delivered with the main unit. You can buy one more optionally. |
| Input voltage | 100 V AC to 240 V AC, 50 Hz to 60 Hz |
| Input current | 10 A (steady state) |
| Output voltage | 12 V/5.83 A |
| Environment and Reliability | RG-WS6512-L |
| Temperature | Main unit operating temperature: 0°C to 45°C (32°F to 113°F) Power module operating temperature: –10°C to +50°C (+14°F to +122°F) Main unit storage temperature: –40°C to +70°C (–40°F to +158°F) Note: At an altitude between 3,000 m (9,843 ft.) and 5,000 m (16,404 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F). |
| Altitude | 0 m to 5,000 m (0 ft. to 16,404 ft.) |
| Humidity | Operating humidity: 10% to 90% RH (non-condensing) Storage humidity: 5% to 95% RH (non-condensing) |
| Fan | Three built-in fans (on the left side) Right-to-left airflow Fan speed adjustment Fan fault alarm |
| Acoustic noise | < 78 dB |
| Mean Time Between Failure (MTBF) | 200,000 hours (22 years) at the operating temperature of 25°C (77°F) |
Software Specifications | RG-WS6512-L |
| WLAN | |
| Default number of manageable APs | 128 Note: The default number of APs that can be managed by the RG-WS6512-L is subject to the AP model. See the Ordering Information for details. |
| Maximum number of configurable APs | 4,096 |
| Maximum number of manageable APs | 2,304 Note: The maximum number of APs that can be managed by the RG-WS6512-L is subject to the AP model. See the Ordering Information for details. |
| Maximum number of manageable STAs | 32,768 Note: The maximum number of STAs that can be managed by the RG-WS6512-L is subject to the network environment. Contact technical support team for details. |
| WLAN service | Maximum number of WLAN IDs: 4,094 Maximum number of associated STAs per WLAN: 32,768 |
| Intra-AC roaming handoff time | < 50 ms |
| Maximum number of virtualized ACs | 4 |
| Routing and Switching | |
| 802.11 forwarding capacity | 40 Gbps (subject to the wireless network environment) |
| Number of MAC address entries | 131,072 |
| Number of VLANs | 4,096 |
| Number of ARP entries | 81,920 |
| DHCP address pools | Number of IPv4 address pools: 2,000 Number of IPv4 addresses: 81,920 Number of IPv6 address pools: 256 Number of IPv6 addresses: 2,048 |
| Number of routing entries | IPv4 routing entries: 8,192 IPv6 routing entries: 10,000 |
| Number of multicast entries | Static routing entries: 2,048 Multicast group routing entries: 4,096 |
| Security and Authentication | |
| Maximum number of STAs supported by the built-in Portal server | 7,500 |
| Number of ACL entries | 131,072 |
| Applicable Software Version | RG-WS6512-L |
| Applicable software version | RGOS 11.9(6)W1B3 or later |
| WLAN | RG-WS6512-L |
| IEEE 802.11 protocols | 802.11, 802.11b, 802.11a, 802.11g, 802.11d, 802.11h, 802.11w, 802.11k, 802.11v, 802.11r, 802.11i, 802.11e, 802.11n, 802.11ac, and 802.11ax |
| CAPWAP | Layer 2 and Layer 3 topology between an AP and an AC An AP can automatically discover the accessible AC. An AP can be automatically upgraded through the AC. An AP can automatically download the configuration file from the AC. CAPWAP through NAT |
| Roaming | Intra-AC Layer 2 or Layer 3 roaming Inter-AC Layer 2 or Layer 3 roaming Intra-AC Layer 2 or Layer 3 roaming in local forwarding mode Inter-AC Layer 2 or Layer 3 roaming in local forwarding mode |
| Forwarding mode | Centralized forwarding Local forwarding Service-based flexible forwarding |
| Wireless QoS | AP/WLAN/STA-based rate limiting (WLAN/STA-based rate limit range: 8-261,120 in the unit of 8 Kbps. For example, if you set the value to 8, the rate limit is 8 x 8 Kbps = 64 Kbps.) Static and intelligent rate limiting based on STA quantity Fair scheduling |
| User isolation | AC-based user isolation AP-based user isolation WLAN-based user isolation |
| Reliability | AC virtualization AC failover Multi-AC hot standby (1+1 A/A and A/S hot standby, and N+1 hot standby) Multi-AC cluster (N-to-N) Remote intelligent perception technology (RIPT) Non-stop service during upgrade |
| STA management | Access control based on the number of STAs associated with the AP Access control based on the number of STAs associated with the SSID Balanced access control based on the number of STAs associated with the AP Balanced access control based on the AP traffic Band steering Configuration of the RSSI threshold in dB (Range: 0-100) Configuration of the STA idle timeout period in seconds (range: 60-86,400) |
| WLAN optimization | Adjustment of the transmit power for beacon packets or probe responses |
| RF management | Country or region code setting Manual setting of the transmit power Automatic setting of the transmit power Manual setting of the operating channel Automatic setting of the operating channel Automatic adjustment of the data rate Coverage hole compensation AP load balancing based on traffic and STA quantity Band selection Radio Frequency Interference (RFI) detection and mitigation |
| Security | RG-WS6512-L |
| IPv4 security authentication | Web authentication 802.1X authentication MAB authentication SMS authentication |
| IPv6 security authentication | Web authentication |
| IEEE 802.11 security and encryption | Multi-SSID mode SSID hiding IEEE 802.11i-compliant PSK authentication WPA and WPA2 WPA3: WPA3-Personal (SAE), WPA3-Enterprise (CCMP, 128-bit), and WPA3-Enterprise (GCMP, 192-bit) WEP (WEP/WEP128) TKIP CCMP Anti-ARP spoofing |
| CPP | Supported |
| NFPP | Supported |
| WIDS | Supported |
| AP virtualization | Supported |
| Protocol | RG-WS6512-L |
| IPv4 protocols | Ping and traceroute DHCP server, DHCP client, DHCP relay, and DHCP snooping DNS client NTP Telnet TFTP server and TFTP client FTP server and FTP client |
| IPv6 protocols | DNSv6 client DHCPv6 relay and DHCPv6 server TFTPv6 client FTPv6 server and FTPv6 client IPv6 CAPWAP ICMPv6 IPv6 ping Manual tunnels, automatic tunnels, and ISATAP tunnels Manually configured IP addresses and automatically created local addresses IPv6 traceroute Neighbor Discovery (ND) |
| IPv4 routing | Static routing, RIP, and OSPF |
| IPv6 routing | Static routing, RIPng, and OSPFv3 |
| Management | RG-WS6512-L |
| Network management | SNMP v1/v2c/v3 RMON Syslog Remote probe |
| Network management platform | Eweb Ruijie Cloud Wi-Fi heat map |
| User access management | Console port login, Telnet login, SSH login, and FTP upload |
| Regulatory Compliance | RG-WS6512-L |
| Safety regulation | IEC 62368-1, EN 62368-1 |
| EMC regulation | EN 55032, EN 55035, EN 61000-3-3, EN IEC 61000-3-2, and ETSI EN 300 386 |
