● Radio 1 – 2.4 GHz: 2×2 MIMO, two spatial streams

● Radio 2 – 5 GHz: 2×2 MIMO, two spatial streams

Channels:

● Radio 1 – 2.4 GHz: 20 MHz and 40 MHz

● Radio 2 – 5 GHz: 20 MHz and 40 MHz

Combined peak data rate: 600 Mbps

● Radio 1 – 2.4 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15 )

● Radio 2 – 5 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15)

Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM)

Modulation types: BPSK, QPSK, 16-QAM, 64-QAM

Packet aggregation:

● Aggregate MAC Protocol Data Unit (A-MPDU)

● Aggregate MAC Service Data Unit (A-MSDU)

Dynamic Frequency Selection (DFS)

Cyclic Delay/Shift Diversity (CDD/CSD)

Maximum Ratio Combining (MRC)

Space-Time Block Coding (STBC)

Low-Density Parity Check (LDPC)

Transmit beam-forming (TxBF)

● Radio 2 – 5 GHz: 2×2 MIMO, two spatial streams

Channels:

● Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz

Combined peak data rate: 1.733 Gbps

● Radio 2 – 5 GHz: 6.5 Mbps to 1.733 Gbps (MCS0 to MCS9)

Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM)

Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

Packet aggregation:

● Aggregate MAC Protocol Data Unit (A-MPDU)

● Aggregate MAC Service Data Unit (A-MSDU)

Dynamic Frequency Selection (DFS)

Cyclic Delay/Shift Diversity (CDD/CSD)

Maximum Ratio Combining (MRC)

Space-Time Block Coding (STBC)

Low-Density Parity Check (LDPC)

Transmit beam-forming (TxBF)

● Radio 1 – 2.4 GHz: 2×2 uplink/downlink MU-MIMO, two spatial streams

● Radio 2 – 5 GHz: 2×2 uplink/downlink MU-MIMO, two spatial streams

Channels:

● Radio 1 – 2.4 GHz: 20 MHz and 40 MHz

● Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz

Combined peak data rate: 2.976 Gbps:

● Radio 1 – 2.4 GHz: 8.6 Mbps to 0.574 Gbps (MCS0 to MCS11)

● Radio 2 – 5 GHz: 8.6 Mbps to 2.402 Gbps (MCS0 to MCS11)

Radio technologies: uplink/downlink Orthogonal Frequency-Division Multiple Access (OFDMA)

Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

Packet aggregation:

● Aggregate MAC Protocol Data Unit (A-MPDU)

● Aggregate MAC Service Data Unit (A-MSDU)

Dynamic Frequency Selection (DFS)

Cyclic Delay/Shift Diversity (CDD/CSD)

Maximum Ratio Combining (MRC)

Space-Time Block Coding (STBC)

Low-Density Parity Check (LDPC)

Transmit beam-forming (TxBF)

WPA3

● 2.4 GHz: two built-in omnidirectional antennas, with peak antenna gain of 5.2 dBi.

● 5 GHz: two built-in omnidirectional antennas, with peak antenna gain of 6 dBi.

Bluetooth

● One onboard omnidirectional antenna, with peak antenna gain of 2.4 dBi

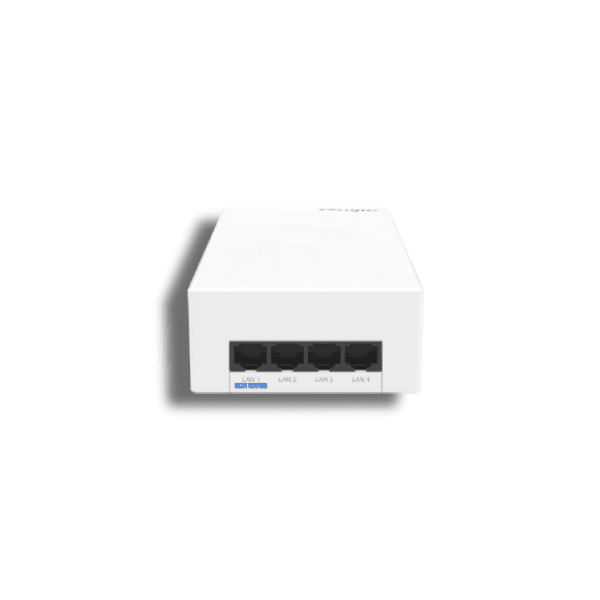

Downlink: 4 x 10/100/1000Base-T ports, LAN 1 supports 48 V/10 W power supply to an attached device.

1 x micro USB console port

1 x Bluetooth 5.1

● AP power-on status

● Software initialization status and upgrade status

● Uplink service interface status

● CAPWAP tunnel timeout

● Specific AP locating

● Press the button for shorter than 2 seconds. Then the device restarts.

● Press the button for longer than 5 seconds. Then the device restores to factory settings.

Shipping: 187 mm x 104 mm x 69 mm (7.37 in. x 4.10 in. x 2.72 in.)

Mounting bracket: 0.1 kg (0.22 lbs)

Shipping: 0.54 kg (1.19 lbs)

Wall-mount (delivered with a mounting bracket)

● 48 V DC/0.6 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power supply needs to be purchased independently.

● PoE input over the backplane interface: compliance with 802.3af/at standard (PoE/PoE+)

Note:

● When powered by 802.3at (PoE+), the AP operates with the optimal performance.

● If both DC power and PoE are available, DC power is preferred.

● DC power: 25 W, 2.4 GHz radio 2×2, 5 GHz radio 2×2, LAN 1 for PoE supply

● 802.3at (PoE+): 25 W, 2.4 GHz radio 2×2, 5 GHz radio 2×2, LAN 1 for PoE supply

● 802.3af (PoE): 15 W, 2.4 GHz radio 2×2, 5 GHz radio 2×2, LAN 1 port that fail to provide power for external devices (PoE out disabled of LAN 1 port disabled)

● Idle mode: 8 W

Storage humidity: 5% RH to 95% RH (non-condensing)

Storage altitude: 0 m to 3,000 m (0 ft. to 9,842.52 ft.)

Operating temperature: 0°C to +40°C (32℉~104℉)

Operating humidity: 5% RH to 95% RH (non-condensing)

Operating altitude: 0 m to 3,000 m (0 ft. to 9,842.52 ft.)

Note: At an altitude in the range of 1,800–3,000 m (5,905.51–9,842.52 ft.), every time the altitude increases by 166 m (544.62 ft.), the maximum temperature decreases by 1°C (1.8°F).

● Maximum transmit power: 20 dBm (100 mW)

5 GHz

● Maximum transmit power: 20 dBm (100 mW)

Note:

● Adjusting the transmit power by percentage (recommended) and in 1dBm increments.

● The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance.
