● Radio 1 – 2.4 GHz: 4×4 MIMO, four spatial streams

● Radio 2 – 5 GHz: 4×4 MIMO, four spatial streams

● Radio 3 – 5 GHz: 4×4 MIMO, four spatial streams

● Radio 4 – 2.4 GHz/5 GHz: 2×2 MIMO, two spatial streams

Channels:

● Radio 1 – 2.4 GHz: 20 MHz and 40 MHz

● Radio 2 – 5 GHz: 20 MHz and 40 MHz

● Radio 3 – 5 GHz: 20 MHz and 40 MHz

● Radio 4 –2.4 GHz/5 GHz: 20 MHz and 40 MHz

Combined peak data rate: 2.1 Gbps

● Radio 1 – 2.4 GHz: 6.5 Mbps to 600 Mbps (MCS0 to MCS31)

● Radio 2 – 5 GHz: 6.5 Mbps to 600 Mbps (MCS0 to MCS31)

● Radio 3 – 5 GHz: 6.5 Mbps to 600 Mbps (MCS0 to MCS31)

● Radio 4 –2.4 GHz/5 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15)

Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM)

Modulation types: BPSK, QPSK, 16-QAM, 64-QAM

Packet aggregation:

● Aggregate MAC Protocol Data Unit (A-MPDU)

● Aggregate MAC Service Data Unit (A-MSDU)

Dynamic Frequency Selection (DFS)

Cyclic Delay/Shift Diversity (CDD/CSD)

Maximum Ratio Combining (MRC)

Space-Time Block Coding (STBC)

Low-Density Parity Check (LDPC)

Transmit beam-forming (TxBF)

● Radio 2 – 5 GHz: 4×4 MIMO, four spatial streams

● Radio 3 – 5 GHz: 4×4 MIMO, four spatial streams

● Radio 4 – 5 GHz: 2×2 MIMO, two spatial streams

Channels:

● Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz

● Radio 3 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz

● Radio 4 –5 GHz: 20 MHz, 40 MHz, and 80 MHz

Combined peak data rate: 7.801 Gbps

● Radio 2 – 5 GHz: 6.5 Mbps to 3.467 Gbps (MCS0 to MCS9)

● Radio 3 – 5 GHz: 6.5 Mbps to 3.467 Gbps (MCS0 to MCS9)

● Radio 4 – 5 GHz: 6.5 Mbps to 0.867 Gbps (MCS0 to MCS9)

Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM)

Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

Packet aggregation:

● Aggregate MAC Protocol Data Unit (A-MPDU)

● Aggregate MAC Service Data Unit (A-MSDU)

Dynamic Frequency Selection (DFS)

Cyclic Delay/Shift Diversity (CDD/CSD)

Maximum Ratio Combining (MRC)

Space-Time Block Coding (STBC)

Low-Density Parity Check (LDPC)

Transmit beam-forming (TxBF)

● Radio 1 – 2.4 GHz: 4×4 uplink/downlink MU-MIMO, four spatial streams

● Radio 2 – 5 GHz: 4×4 uplink/downlink MU-MIMO, four spatial streams

● Radio 3 – 5 GHz: 4×4 uplink/downlink MU-MIMO, four spatial streams

Channels:

● Radio 1 – 2.4 GHz: 20 MHz and 40 MHz

● Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz

● Radio 3 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz

Combined peak data rate: 10.755 Gbps

● Radio 1 – 2.4 GHz: 8.6 Mbps to 1.147 Gbps (MCS0 to MCS11)

● Radio 2 – 5 GHz: 8.6 Mbps to 4.804 Gbps (MCS0 to MCS11)

● Radio 3 – 5 GHz: 8.6 Mbps to 4.804 Gbps (MCS0 to MCS11)

Radio technologies: uplink/downlink Orthogonal Frequency-Division Multiple Access (OFDMA)

Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

Packet aggregation:

● Aggregate MAC Protocol Data Unit (A-MPDU)

● Aggregate MAC Service Data Unit (A-MSDU)

Dynamic Frequency Selection (DFS)

Cyclic Delay/Shift Diversity (CDD/CSD)

Maximum Ratio Combining (MRC)

Space-Time Block Coding (STBC)

Low-Density Parity Check (LDPC)

Transmit beam-forming (TxBF)

WPA3

● 2.4 GHz: four built-in omnidirectional antennas, with peak antenna gain of 6 dBi.

● 5 GHz: eight built-in omnidirectional antennas, with peak antenna gain of 8 dBi.

Bluetooth

● One integrated vertically polarized omnidirectional antenna, with peak antenna gain of 4 dBi.

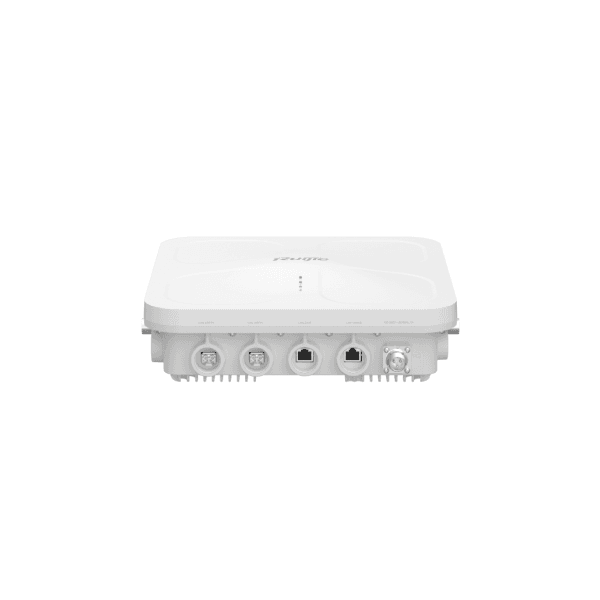

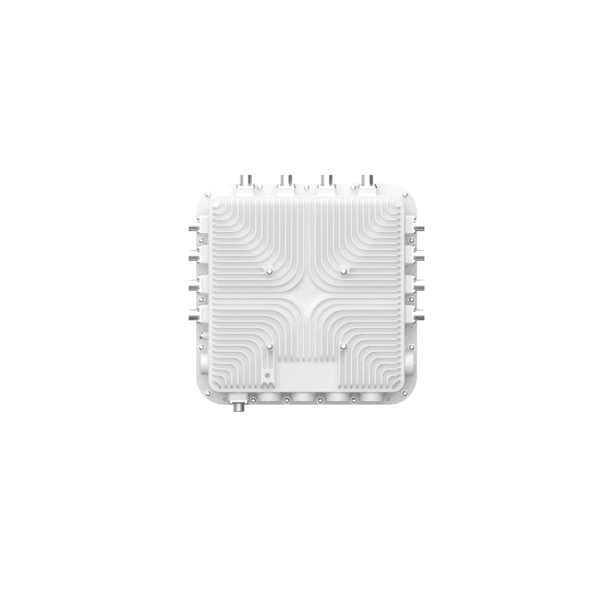

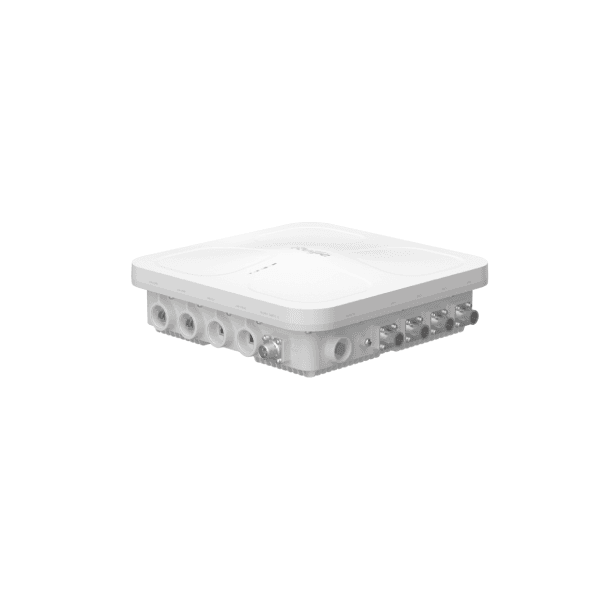

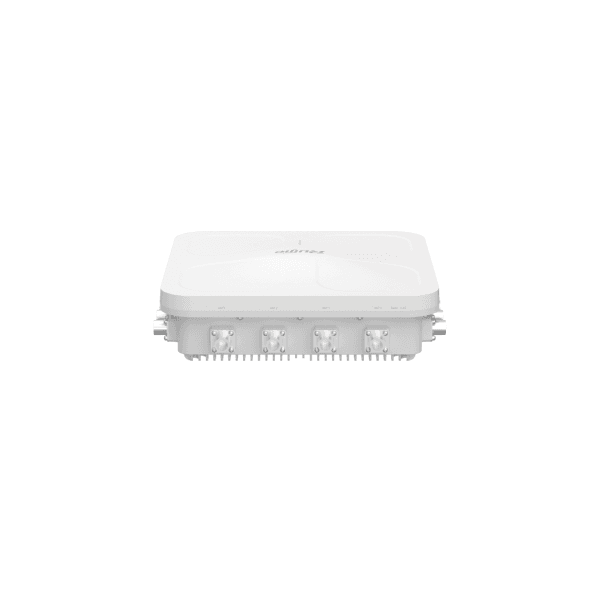

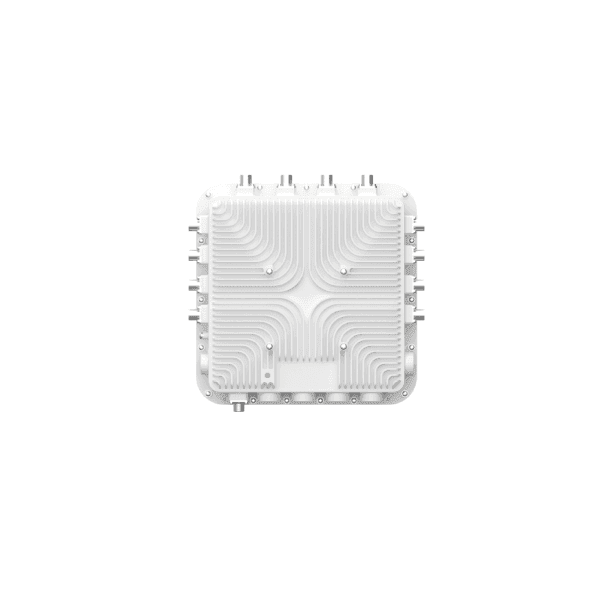

1 x 100/1000Base-T port

2 x 10GE SFP+ ports, compatibility with 1GE and 2.5GE modules

1 x RJ45 console port (serial console port)

1 x Bluetooth 5.1

● AP power-on status

● Software initialization status and upgrade status

● Uplink service interface status

● Wireless user online status

● CAPWAP tunnel timeout

● Specific AP locating

Three single-color signal strength LEDs:

● Whether bridging is enabled

● Whether bridging is successful

● Wireless signal strength after successful bridging

● Press the button for shorter than 2 seconds. Then the device restarts.

● Press the button for longer than 5 seconds. Then the device restores to factory settings.

Shipping: 470 mm x 410 mm x 170 mm (18.50 in. x 16.14 in. x 6.69 in.)

Mounting bracket: 1.2 kg (2.65 lbs)

Shipping: 7.18 kg (15.83 lbs)

● 100–240 V AC power supply: The AC power supply needs to be purchased separately.

● PoE input over ETH/PoE: The power source equipment (PSE) complies with IEEE 802.3af/at/bt standard (PoE/PoE+/PoE++).

Note: If both AC power and PoE are available, AC power is preferred.

● AC power: 50 W, 2.4 GHz radio 4×4, 5 GHz radio 4×4, LAN 2 for PoE supply

● 802.3bt (PoE++) : 50 W, 2.4 GHz radio 4×4, 5 GHz radio 4×4, LAN 2 for PoE supply

● 802.3at (PoE+) : 25 W, 2.4 GHz radio 4×4, 5 GHz radio 4×4, and Radio 3 and AI Radio disabled (LAN 2 fails to provide power for external devices )

● 802.3af (PoE) : 12.95 W (all radios do not work, and LAN 2 fails to provide power for external devices)

● Idle mode: 10 W

Storage humidity: 5% RH to 95% RH (non-condensing)

Storage altitude: –500 m to +5,000 m (–1640.42 ft. to +16,404.20 ft.)

Operating temperature: –40°C to +70°C (–40°F to +158°F)

Operating humidity: 5% RH to 95% RH (non-condensing)

Operating altitude: –500 m to +3,000 m (–1,640.42 ft. to +9,842.52 ft.)

Note: At an altitude in the range of 1,800–3,000 m (5,905.51–9,842.52 ft.), every time the altitude increases by 166 m (544.62 ft.), the maximum temperature decreases by 1°C (1.8°F).

● Maximum transmit power: 29 dBm (794.33 mW)

● Minimum transmit power: 9 dBm (7.94 mW)

5 GHz

● Maximum transmit power: 27 dBm (501.19 mW)

● Minimum transmit power: 7 dBm (5.01 mW)

Note: The transmit power adjusted in percentage. The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance.
