● Radio 1 – 2.4 GHz: 2×2 MIMO, two spatial streams

● Radio 2 – 5 GHz: 2×2 MIMO, two spatial streams

● Radio 3 –2.4 GH/5 GHz: 2×2 MIMO, two spatial streams

Channels:

● Radio 1 – 2.4 GHz: 20 MHz and 40 MHz

● Radio 2 – 5 GHz: 20 MHz and 40 MHz

● Radio 3 –2.4 GH/5 GHz: 20 MHz and 40 MHz

Combined peak data rate: 0.9 Gbps

● Radio 1 – 2.4 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15 )

● Radio 2 – 5 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15)

● Radio 3 – 2.4 GHz/5 GHz: 6.5 Mbps~ 300 Mbps (MCS0 ~ MCS15)

Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM)

Modulation types: BPSK, QPSK, 16-QAM, 64-QAM

Packet aggregation:

● Aggregate MAC Protocol Data Unit (A-MPDU)

● Aggregate MAC Service Data Unit (A-MSDU)

Dynamic Frequency Selection (DFS)

Cyclic Delay/Shift Diversity (CDD/CSD)

Maximum Ratio Combining (MRC)

Space-Time Block Coding (STBC)

Low-Density Parity Check (LDPC)

Transmit beam-forming (TxBF)

● Radio 2 – 5 GHz: 2×2 MIMO, two spatial streams

● Radio 3 – 5 GHz: 2×2 MIMO, two spatial streams

Channels:

● Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz

● Radio 3 – 5 GHz: 20 MHz, 40 MHz, and 80 MHz

Combined peak data rate: 2.6 Gbps

● Radio 2 – 5 GHz: 6.5 Mbps to 1.733 Gbps (MCS0 to MCS9)

● Radio 3 – 5 GHz: 6.5 Mbps to 0.867 Gbps (MCS0 ~ MCS9)

Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM)

Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

Packet aggregation:

● Aggregate MAC Protocol Data Unit (A-MPDU)

● Aggregate MAC Service Data Unit (A-MSDU)

Dynamic Frequency Selection (DFS)

Cyclic Delay/Shift Diversity (CDD/CSD)

Maximum Ratio Combining (MRC)

Space-Time Block Coding (STBC)

Low-Density Parity Check (LDPC)

Transmit beam-forming (TxBF)

● Radio 1 – 2.4 GHz: 2×2 uplink/downlink MU-MIMO, two spatial streams

● Radio 2 – 5 GHz: 2×2 uplink/downlink MU-MIMO, two spatial streams

Channels:

● Radio 1 – 2.4 GHz: 20 MHz and 40 MHz

● Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz

Combined peak data rate: 2.976 Gbps:

● Radio 1 – 2.4 GHz: 8.6 Mbps to 0.574 Gbps (MCS0 to MCS11)

● Radio 2 – 5 GHz: 8.6 Mbps to 2.402 Gbps (MCS0 to MCS11)

Radio technologies: uplink/downlink Orthogonal Frequency-Division Multiple Access (OFDMA)

Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

Packet aggregation:

● Aggregate MAC Protocol Data Unit (A-MPDU)

● Aggregate MAC Service Data Unit (A-MSDU)

Dynamic Frequency Selection (DFS)

Cyclic Delay/Shift Diversity (CDD/CSD)

Maximum Ratio Combining (MRC)

Space-Time Block Coding (STBC)

Low-Density Parity Check (LDPC)

Transmit beam-forming (TxBF)

WPA3

● 2.4 GHz: two built-in omnidirectional antennas, with peak antenna gain of 5.4 dBi.

● 5 GHz: two built-in omnidirectional antennas, with peak antenna gain of 5.2 dBi.

Bluetooth

● One integrated vertically polarized omnidirectional antenna, with peak antenna gain of 4.6 dBi.

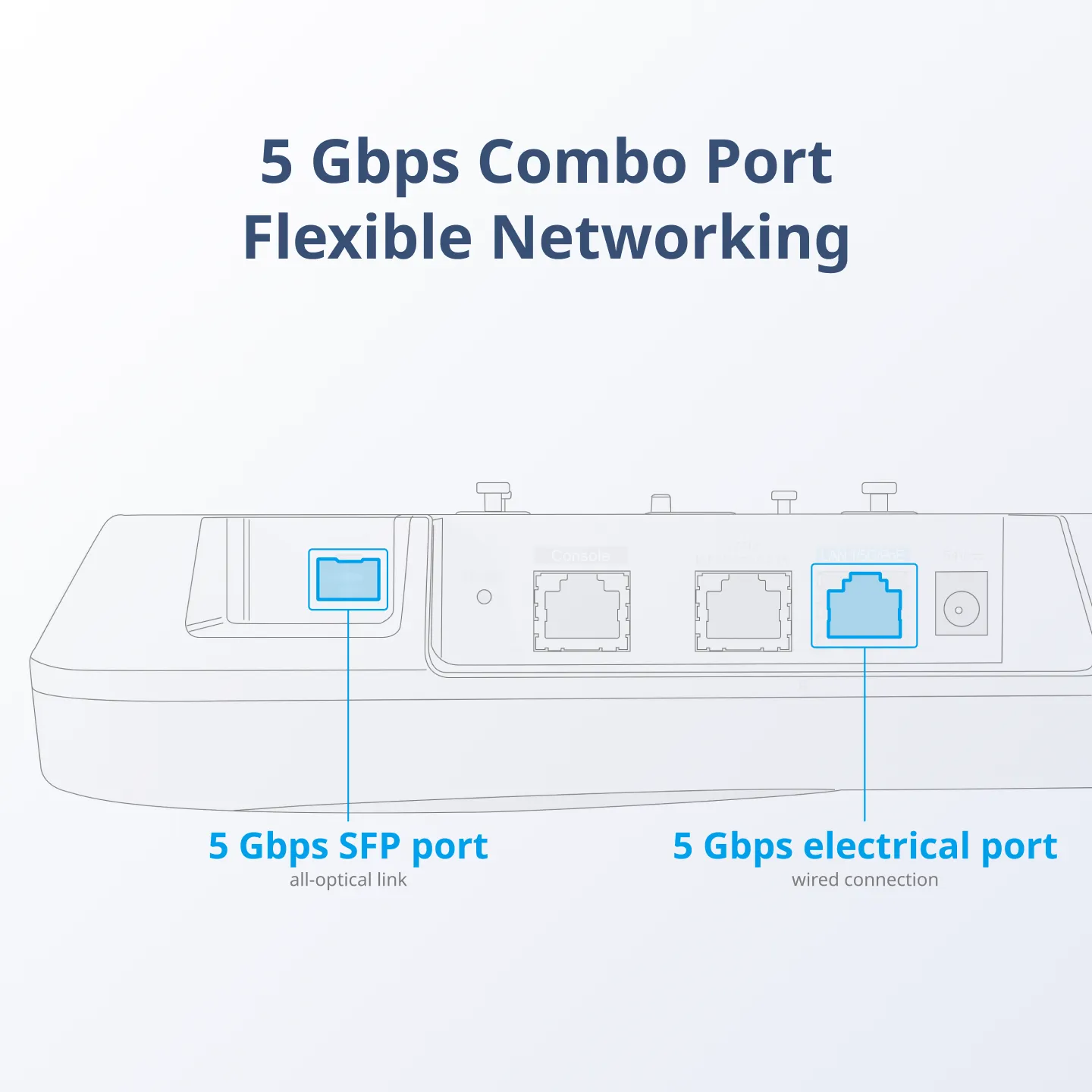

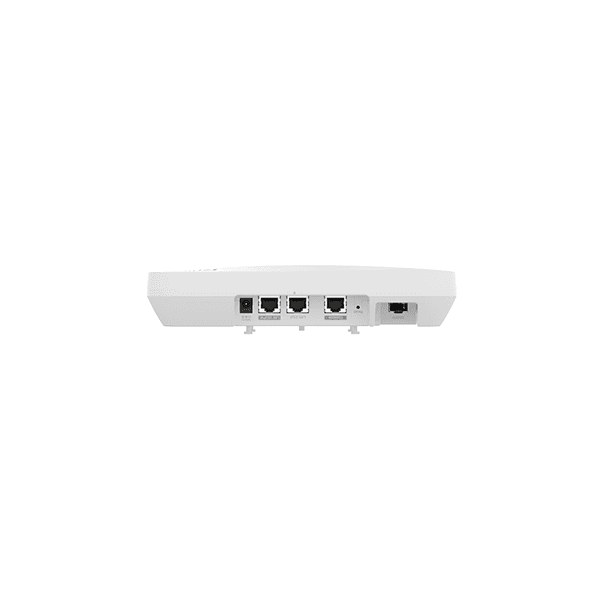

1 x 5GE SFP/RJ45 combo port, compatibility with 1GE and 2.5GE modules, shared with one 100/1000/2.5G/5GBASE-T port

1 x 10/100/1000Base-T port

1 x RJ45 console port (serial console port)

1 x USB 3.0 (Type-A connector)

1 x Bluetooth 5.1

● AP power-on status

● Software initialization status and upgrade status

● Uplink service interface status

● Wireless user online status

● CAPWAP tunnel timeout

● Specific AP locating

● Press the button for shorter than 2 seconds. Then the device restarts.

● Press the button for longer than 5 seconds. Then the device restores to factory settings.

Shipping: 284 mm x 262 mm x 124 mm (11.18 in. x 10.31 in. x 4.88 in.)

Mounting bracket: 0.1 kg (0.22 lbs)

Shipping: 1.25 kg (2.76 lbs)

● 54 V DC/1.1 A power input over DC connector: The DC connector accepts the center-positive circular plug with the inner diameter of 2.1 mm (0.08 in.) or outer diameter of 5.5 mm (0.22 in.) and the length of 9.5 mm (0.37 in.). A DC power supply needs to be purchased independently.

● PoE input over LAN 1: The power source equipment (PSE) complies with IEEE 802.3af/at/bt standard (PoE/PoE+/PoE++).

Note: If both DC power and PoE are available, DC power is preferred.

● DC power: 40 W, 2.4 GHz radio 2×2, 5 GHz radio 2×2, LAN 2 for PoE supply, and USB port enabled

● 802.3bt (PoE++): 40 W, 2.4 GHz radio 2×2, 5 GHz radio 2×2, LAN 2 for PoE supply, and USB port enabled

● 802.3at (PoE+): 23 W, 2.4 GHz radio 2×2, 5 GHz radio 2×2, LAN 2 and USB port that fail to provide power for external devices (PoE out disabled of LAN 2 and USB port disabled)

● 802.3af (PoE): 12.95 W, 2.4 GHz radio 1×1, 5 GHz radio 1×1, AI Radio is disabled, LAN 2 and USB port that fail to provide power for external devices (PoE out disabled of LAN 2 and USB port disabled)

● Idle mode: 10.3 W

supply

● The USB port can source 1 A/5 W power to an attached device.

● The LAN 2 port can source 48 V/12.95 W power to an IoT unit.

Storage humidity: 5% RH to 95% RH (non-condensing)

Storage altitude: –500 m to +5,000 m (–1640.42 ft. to +16,404.20 ft.)

Operating temperature: –10°C to +50°C (14°F to 122°F)

Operating humidity: 5% RH to 95% RH (non-condensing)

Operating altitude: –500 m to +5,000 m (–1640.42 ft. to +16,404.20 ft.)

Note: At an altitude in the range of 2,000–5,000 m (6,561.68–16,404.20 ft.), every time the altitude increases by 166 m (544.62 ft.), the maximum temperature decreases by 1°C (1.8°F).

● Maximum transmit power: 27 dBm (501.19 mW)

● Minimum transmit power: 19 dBm (79.43 mW)

5 GHz

● Maximum transmit power: 26 dBm (398.11 mW)

● Minimum transmit power: 21 dBm (125.89 mW)

Note: The transmit power adjusted in percentage. The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance.
