Name: Inspur NF8260M5 Server - Inspur NF Rack Servers
Brand: One Solution Hardware Co

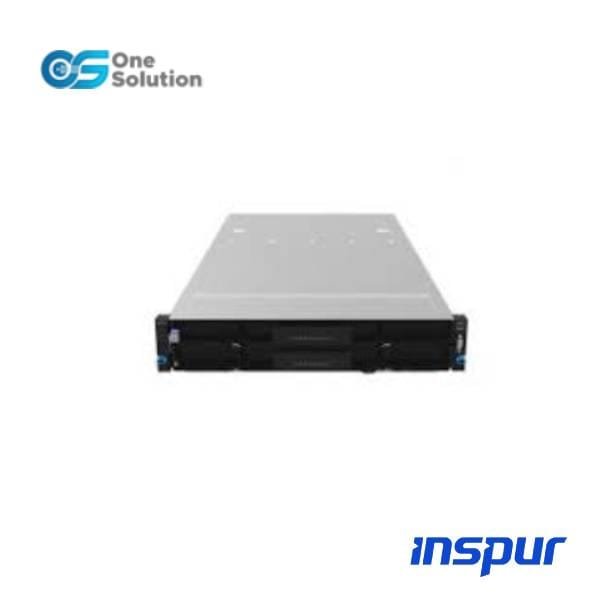

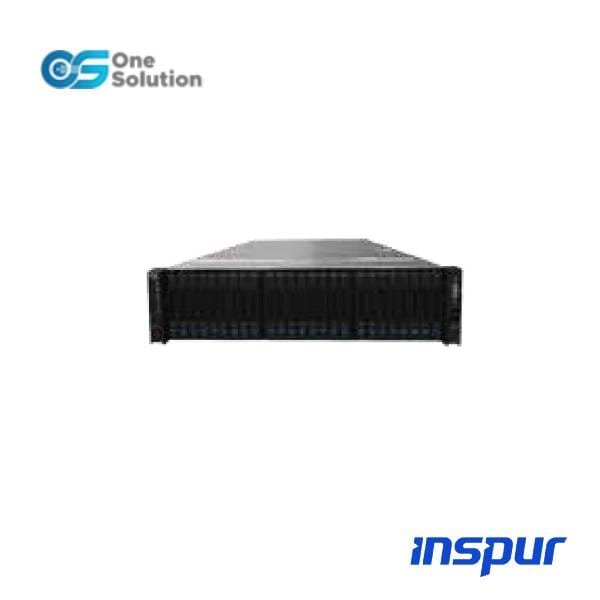

Inspur NF8260M5 Server Overview

Inspur NF8260M5 Server is a high-density, widely flexible, and powerful four socket 2U server which adapts to any demanding enterprise workload with ultra-dense memory design to enhance space efficiency. OCP Accepted NF8260M5 Open Platform, contributed by Inspur and Intel.

Quick Spec

Table 1 shows the quick spec.

Model	NF8260M5
Form Factor	2U rack-mount, 780mm (D)
Processor	Intel Xeon Scalable, two-socket/four-socket, support max. 28 cores
Chipset	Intel C620 series chipset
Memory	12 DIMM slots per processor, 6 channels per processor, 2 DIMM per channel RDIMM, LRDIMM and NVDIMM Max. Capacity (RDIMM): 1.5TB, 48x 32GB @2666 MHz Max. Capacity (LRDIMM): 6.0TB, 48x 128GB @2666 MHz
PCI Slots	Up to 8x standard PCI-E slots and support one optional OCP Mezz

Product Details

Inspur NF8260M5 Server provides these features:

• OCP Accepted

Jointly contributed by Inspur and Intel

• Scalable 4P Performance in a Dense 2U Form Factor.

Designed for the enterprise, all the power and capacity required to meet business needs.

• Reliability for Multiple Workloads.

Support for up to two 2000W Power Supplies for increasing redundancy and reducing unnecessary downtime.

• Flexible Expandability.

Support up to eight PCI-E expansion cards, including graphic processor units and network adapters, offering increased expandability.

Inspur NF8260M5 Server Specification

Inspur NF8260M5 Server Specification
Form Factor	2U rack-mount, 780mm (D)
Processor	Intel® Xeon® Scalable, two-socket/four-socket, support max. 28 cores
Chipset	Intel ® C620 series chipset
Memory	12 DIMM slots per processor, 6 channels per processor, 2 DIMM per channel RDIMM, LRDIMM and NVDIMM Max. Capacity (RDIMM): 1.5TB, 48x 32GB @2666 MHz Max. Capacity (LRDIMM): 6.0TB, 48x 128GB @2666 MHz
PCI Slots	Up to 8x standard PCI-E slots and support one optional OCP Mezz
Internal Storage	Up to 24x 2.5” SAS/SATA or 6x NVMe SSD
Ethernet	Integrated LAN controller; up to 4x 10GbE
Power Supply	800W/1300W/1600W/2000W, support 1+1 redundancy
M.2 & SD support	Up to two M.2
