ZKTeco D3180S [TD]
ZKTeco D3180S [TD]

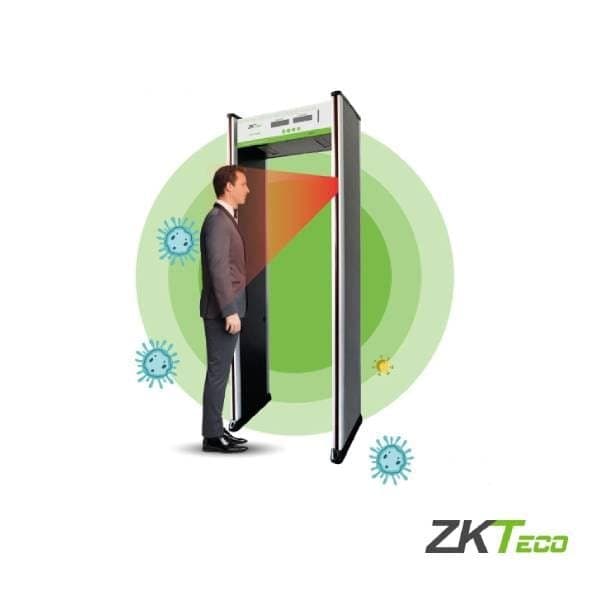

These images showcase the design and features of the ZKTeco ZK-D3180S [TD], highlighting its 18 detection zones and integrated temperature measurement system. For more detailed visuals and information, you can visit the official ZKTeco product page:
ZKTeco D3180S [TD] – Walk-Through Metal Detector with Fever Detection
The ZK-D3180S [TD] is an advanced walk-through metal detector equipped with a temperature detection system. It is designed for high-security screening while also detecting elevated body temperatures, making it ideal for use in airports, government buildings, hospitals, and large events.
Where to Use:
🔹 Airports & Transportation Hubs
🔹 Government & Corporate Buildings
🔹 Healthcare Facilities & Hospitals
🔹 Public Events & Stadiums
🔹 Schools & Universities
ZKTeco D3180S [TD] Specifications:
| Specification | Details |
|---|---|
| Model | ZK-D3180S [TD] |
| Power Supply | AC 100V ~ 240V |
| Working Temperature | -20°C ~ +50°C |
| Working Frequency | 4KHz ~ 8KHz |
| External Dimensions | 2220mm (H) × 835mm (W) × 578mm (D) |
| Internal Dimensions | 1990mm (H) × 700mm (W) × 578mm (D) |
| Package Dimensions | 2310mm (H) × 350mm (W) × 665mm (D) |
| Gross Weight | 65kg |
| Temperature Sensor Type | IR Temperature Sensor |
| Temperature Measurement Time | ≤1s |
| Measurement Point | Forehead or Wrist |
| Best Measurement Distance | 150mm |
| Sensor Height | 1500mm (Customizable) |
| Tolerance of Measurement | ±0.5°C |
| Measurement Range | 30°C – 45°C |
| Interval Between Measurements | 2s |
| ZKTeco Logo | Standard |
