HPE Aruba JL320A - Aruba 2930M Series Switches

HPE Aruba JL320A – Aruba 2930M Series Switches

(1 customer review)

Aruba 2930M 24G PoE+ 1-slot Switch

Access Control List (ACL) support, ARP support, BOOTP support, Class of Service (CoS), CPU protection, DHCP protection, DHCP server, DHCP support, DiffServ support,



Add to quote
Categories: ,

HPE Aruba JL320A Overview

The Aruba 2930M Switch Series provides a convenient and cost-effective access switch solution that can be quickly set up with Zero Touch Deployment.


Quick Specs

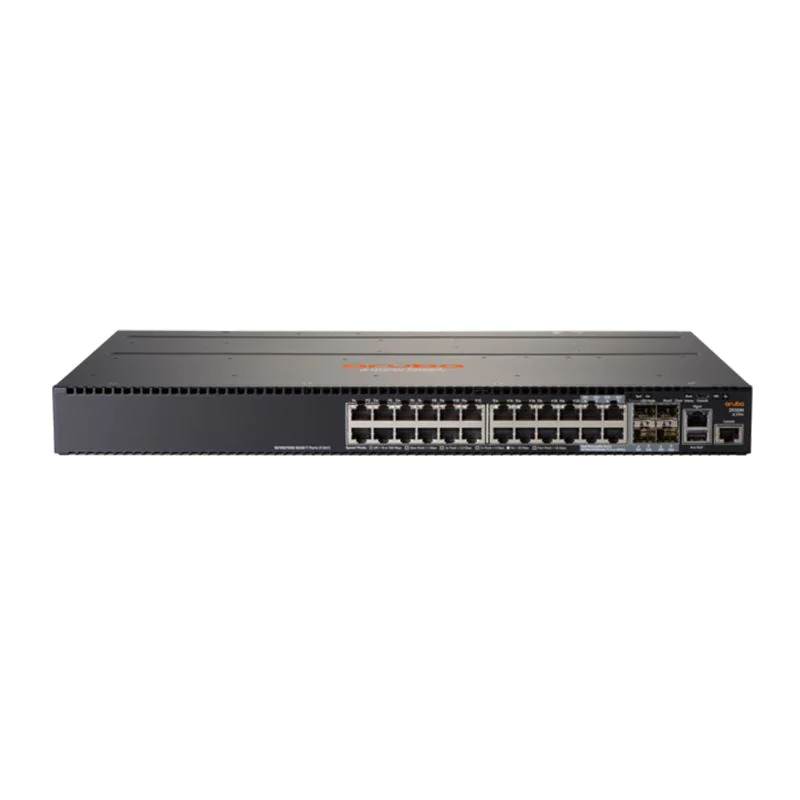

Figure 1 shows the appearance of JL320A. JL320A

Table 1 shows the Quick Specs.

Product CodeJL320A
Interfaces



1 x 1000Base-T management, 1 x serial (console), 1 x USB Type B, 20 x 1000Base-T RJ-45 PoE+, 4 x 1000Base-T
Nominal VoltageAC 120/230 V
Frequency Required50/60 hertz
SubtypeGigabit Ethernet


Product Details

Figure 2 shows the front panel of JL320A. JL320A front

Figure 3 shows the back panel of JL320A. JL320A back

Features

  • Aruba Layer 3 Switch with 10 chassis backplane stacking, static, RIP and access OSPF routing, Tunnel Node, ACLs, SDN, and robust QoS
  •  Advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and Aruba Central
  •  Modular 10GbE or 40GbE uplinks and HPE Smart Rate (IEEE 802.3bz), up to 1440W PoE+
  •  Models with 24 ports of HPE Smart Rate with IEEE 802.3bz
  •  Simple deployment with Zero Touch Provisioning

JL320A Specification

JL320A Specification

Networking
TypeSwitch
SubcategoryNetwork hubs and switches
SubtypeGigabit Ethernet
Form FactorRack-mountable
StackableStackable
Ports Qty24
Advanced SwitchingLayer 3
Routing ProtocolCIDR, ECMP, IGMP, IGMPv2, IGMPv3, MLD, OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2, RIPng, Static IP routing, Static IPv4 routing, Static IPv6 routing
MAC Address Table Size32768 entries
Jumbo Frame Support9220 bytes
ManageableYes
Remote Management ProtocolCLI, HTTP, RMON 1, SNMP, SNMP 1, SNMP 2, SNMP 2c, SNMP 3, SSH, SSH-2, Telnet, XRMON
Power Over Ethernet (PoE)PoE+
PoE Budget720 watt
Features



Access Control List (ACL) support, ARP support, BOOTP support, Class of Service (CoS), CPU protection, DHCP protection, DHCP server, DHCP support, DiffServ support, Dynamic ARP protection, Dynamic VLAN Support (GVRP), Flow control, Full duplex capability, ICMP Router Discovery Protocol (IRDP), IGMP snooping, Internet Control Message Protocol (ICMP), IPv6 support, Jumbo Frames support, Link Aggregation Control Protocol (LACP), LLDP support, LLDP-MED, MAC address lockout, Management Information Base (MIB), Management Information Base (MIB) II, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), OpenFlow support, Quality of Service (QoS), sFlow, SNTP support, Spanning Tree Protocol (STP) support, STP BPDU Guard, STP Root Guard, Syslog support, Type of Service (ToS), Uni-Directional Link Detection (UDLD), Virtual Extensible LAN (VXLAN), VLAN support
Compliant Standards



IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3x
Ports
Qty20
Type10/100/1000 (PoE+)
Ports (2nd)
Qty4
TypeCombo Gigabit SFP
Expansion Slots
Expansion Slots



1 (total) / 1 (free) x expansion slot, 1 (total) / 1 (free) x Stacking Module slot
Interface Provided
Interfaces



1 x 1000Base-T management, 1 x serial (console), 1 x USB Type B, 20 x 1000Base-T RJ-45 PoE+, 4 x 1000Base-T
Power Device
TypeInternal power supply, Internal power supply (not installed)
Installed Qty0
Max Supported Qty2
Nominal VoltageAC 120/230 V
Frequency Required50/60 hertz
80 PLUS Certification80 PLUS Silver
Dimensions
Width17.4 inch
Depth12.8 inch
Height1.7 inch
