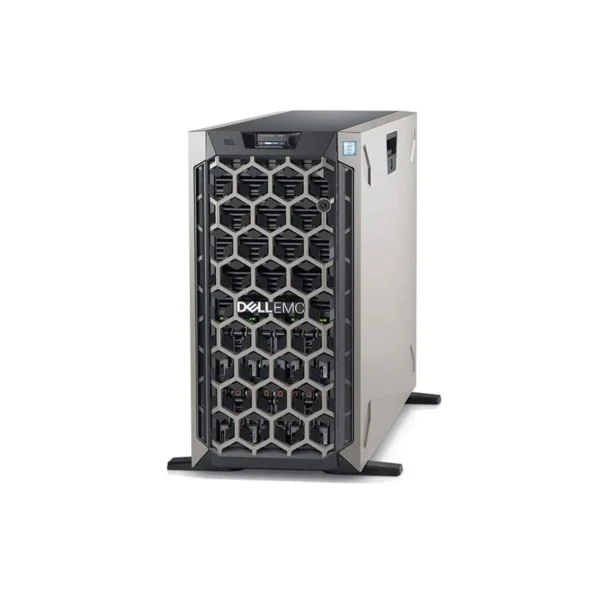

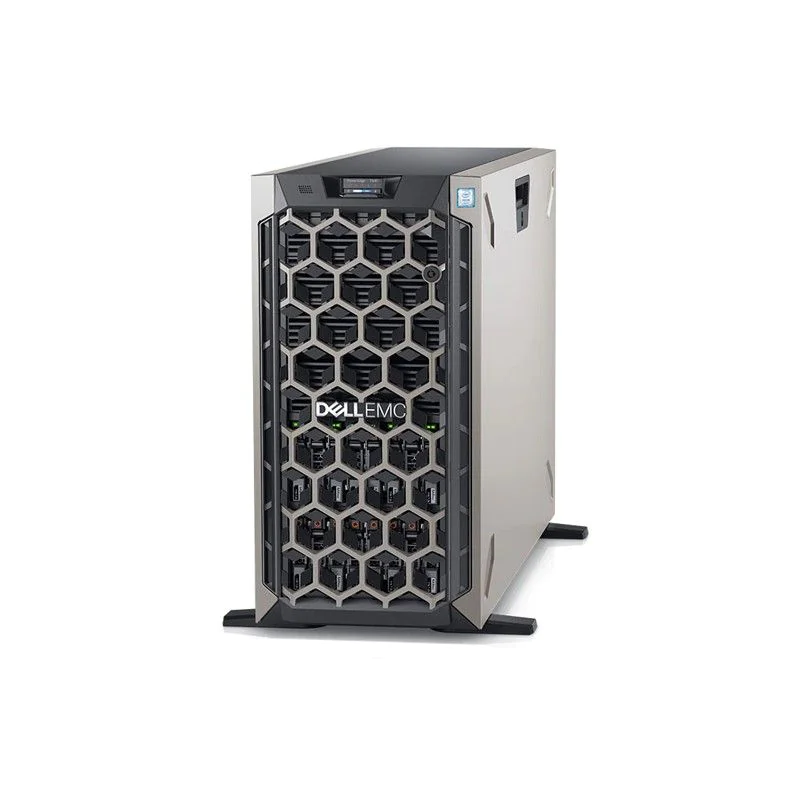

Dell PowerEdge T640 Servers
Dell 5U T640 5218/8G*1/600G SAS 10K*1/H330/DVD/750W*1/3.5-8
Dell 5U T640 5218 (16 core, 32 thread, 2.30 GHz, 22
MB)/8G*1/600G SAS 10K*1/H330/DVD/750W*1/3.5-8
Dell PowerEdge T640 Servers
Dell 5U T640 5218/8G*1/600G SAS 10K*1/H330/DVD/750W*1/3.5-8 Overview
The Dell PowerEdge T640 is the latest 2-socket, rack-capable tower (5U rack) server designed to run complex workloads using highly scalable memory, I/O, and network options. The system features the Intel Xeon Processor Scalable family, up to 24 DIMMs, PCI Express (PCIe) 3.0 enabled expansion slots, and a choice of network interface technologies to cover NIC and LOM.
Quick Specs
Table 1 shows the Quick Specs.
| Product Name | Dell 5U T640 5218/8G*1/600G SAS 10K*1/H330/DVD/750W*1/3.5-8 |
| Processor | Intel 5218 |
| Hard Drive | 600G |
| Memory | 8GB |
| DIMM Speed | Up to 2993 MT/s |
| Drive Bay | 8x 3.5″ |
| Software RAID | S140 |
| Power Supplier | 750W |
Product Details
Dell T640 Series provides these benefits:
① Adapt and scale to your dynamic business needs
② Intuitive systems management with intelligent automation
③ Safeguard data with integrated security
Figure 1 shows the front panel of Dell T640 8×3.5 Server.
Note:
| ① | Power button |
| ② | Status LED indicators |
| ③ | USB port |
| ④ | USB port |
| ⑤ | Micro USB port |
| ⑥ | Optical drive (optional) |
| ⑦ | Hard drive slots |
Figure 2 shows the rear panel of Dell T640 8×3.5 Server.
Note:
| ① | PCIe expansion card slot(s) |
| ② | System health and system ID indicator |
| ③ | VGA port |
| ④ | Serial port |
| ⑤ | NIC port (2) |
| ⑥ | Power supply unit (2) |
Dell 5U T640 5218/8G*1/600G SAS 10K*1/H330/DVD/750W*1/3.5-8 Specification
Dell PowerEdge T640 Tower Servers Specification | |
| Processor | Up to two 2nd Generation Intel® Xeon® Scalable processors, up to 28 cores per processor |
| Operating System | Canonical® Ubuntu® Server LTS Citrix® Hypervisor ® Microsoft® Windows Server® with Hyper-V Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi® |
| Accelerators | Up to four 300W and eight 150W GPUs NVIDIA Tesla P100, P40, K80M, M60, M10, AMD S7150, S7150X2 |
Memory | |
| DIMM Speed | Up to 2993 MT/s |
| Memory Type | RDIMM LRDIMM NVDIMM |
| Memory Module Slots | 24 DDR4 DIMM slots (12 NVDIMM only) Supports registered ECC DDR4 DIMMs only |
| Maximum RAM | RDIMM 3TB LRDIMM 3TBi NVDIMM 192GB |
Storage | |
| Front Bays | Up to 8 or 18 x 3.5″ SAS/SATA (HDD/SSD), max 216TB Up to 16 x 2.5″ SAS/SATA (HDD/SSD), max 61TB Up to 32 x 2.5” SAS/SATA (HDD/SDD), max 122TB Up to 16 x 2.5” with up to 8 NVMe, SAS/SSD/NVMe (HDD/SDD), max 112TB |
Storage Controllers | |
| Internal Controllers | PERC H330, H730P, H740P, HBA330 |
| External Controller (RAID) | H840, 12Gbps SAS HBA |
| Software RAID | S140 |
| Internal Boot | Boot Optimized Storage Subsystem (BOSS): HWRAID 2 x M.2 SSDs 240GB, 480 GB Internal Dual SD Module |
Management | |
| Embedded / At-the-Server | iDRAC9 iDRAC RESTful API with Redfish iDRAC Direct Quick Sync 2 BLE/wireless module |
| Consoles | OpenManage Enterprise OpenManage Power Center |
| Mobility | OpenManage Mobile |
| Tools | Dell EMC Repository Manager Dell EMC System Update Dell EMC Server Update Utility Dell EMC Update Catalogs iDRAC Service Module IPMI Tool OpenManage Server Administrator OpenManage Storage Services |
| OpenManage Integrations | BMC® Truesight Microsoft® System Center Redhat® Ansible® Modules VMware® vCenter |
| OpenManage Connections | IBM Tivoli® Netcool/OMNIbus IBM Tivoli® Network Manager IP Edition Micro Focus® Operations Manager I Nagios® Core Nagios® XI |
| Power Supplies | 1100W 48VDC, 1100W 380HVDC, 750W 240HVDC, 495W, 750W, 1100W, 1600W, 2000W, 2400W, Platinum 750W, Titanium Hot plug power supplies with full redundancy option Up to 8 hot plug fans with full redundancy |
Ports | |
| Network Options | 2 x 10GbE |
| Front Ports | 1 x Dedicated iDRAC micro-USB 1 x USB 2.0 1 x USB 3.0 6 x USB 2.0/3.0 |
Slots | |
| PCIe | 8 x Gen 3 slots (4 x 8) 8 x Gen 3 slots (4 x 16) |
| Video Card | 1 x VGA |
| Bezel | Optional LCD bezel or security bezel |
| Form Factor | 5U Tower or Rack Server |
Dimensions | |
| Height | 434.5mm (17.1″) (base height) 443.5mm (17.5”) (with foot) |
| Width | 217.9mm (8.6″) (base width) 304.5mm (12.0”) (with foot) |
| Depth | 692.8mm (27.3″) |
| Rack Support | ReadyRails™ sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks). |
