Dell PowerEdge R740 Rack server
Dell 2U R740 5218R (20 Core, 40 Thread,
2.1 GHz, 27.5MB)/8G*1/600G SAS 10K*1/H330/DVD/750W*1/3.5-8
Dell 2U R740 5218R/8G*1/600G SAS 10K*1/H330/DVD/750W*1/3.5-8 Overview
Dell PowerEdge R740 was designed to accelerate application performance leveraging accelerator cards and storage scalability. This model is the Dell PowerEdge R740 Server, including 2U Chassis, 5218R*1 Processor, 8G*1 Memory, 600G SAS 10K*1, H330, DVD, 750W*1 Power Supply, 8 × 3.5inch Hard Drive slots – Dell R740 server.
Quick Spec
Table 1 shows the quick spec.
Model | Dell PowerEdge R740 5218R/8G/600G SAS 10K/H330/DVD/750W/3.5-8 Server |
Description | Dell PowerEdge R740 Server, 2U Chassis, 5218R*1 Processor, 8G*1 Memory, 600G SAS 10K*1, H330, DVD, 750W*1 Power Supply, 3.5inch Hard Drive-8 |
Processor | Intel Xeon Scalable Processors 5218R (20-core, 2.1GHz, 27.5 MB) |
Memory | 8GB |
Hard Drive | 600G SAS 10K |
Hard Drive slots | 8 LFF |
Power Supply | 750W |
Product Details

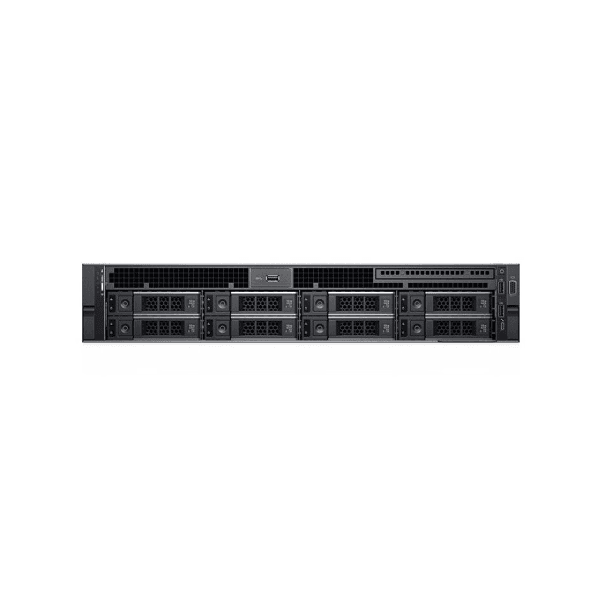

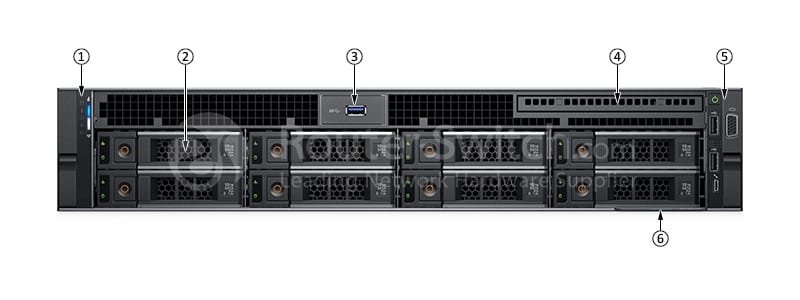

Figure 1 shows the front view of Dell R740 with 8LFF.
Note:
① | Left control panel | ④ | Optical drive (optional) |
② | Drive slots | ⑤ | Right control panel |
③ | USB 3.0 port (optional) | ⑥ | Information tag |

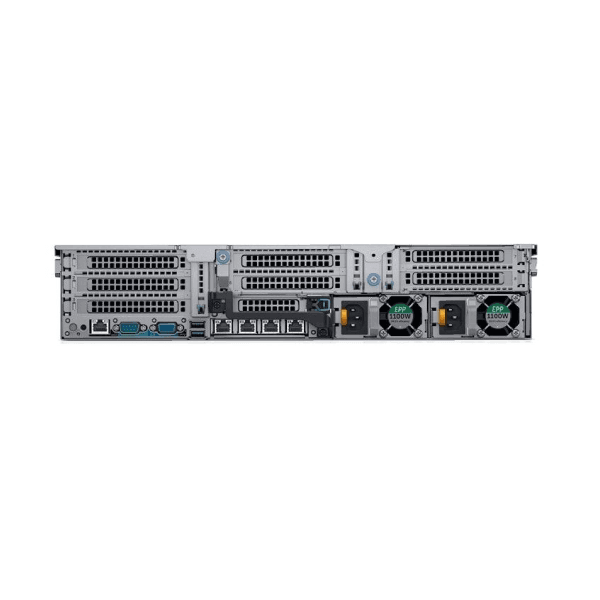

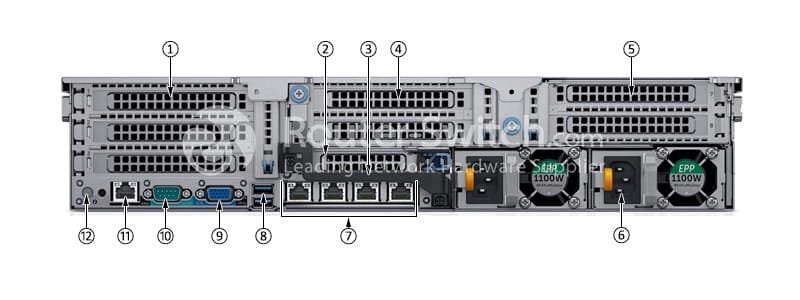

Figure 2 shows the rear view of Dell R740 with 8x PCIe slots available. *Another rear view will show 4x PCIe slots available with riser 2 and riser 3 blanks.
Note:
① | Full-height PCIe expansion card slot (3) | ⑦ | NIC ports |
② | Half-height PCIe expansion card slot | ⑧ | USB port (2) |
③ | Rear handle | ⑨ | VGA port |
④ | Full-height PCIe expansion card slot (2) | ⑩ | Serial port |
⑤ | Full-height PCIe expansion card slot (2) | iDRAC9 dedicated port | |
⑥ | Power supply unit (2) | System identification button |
