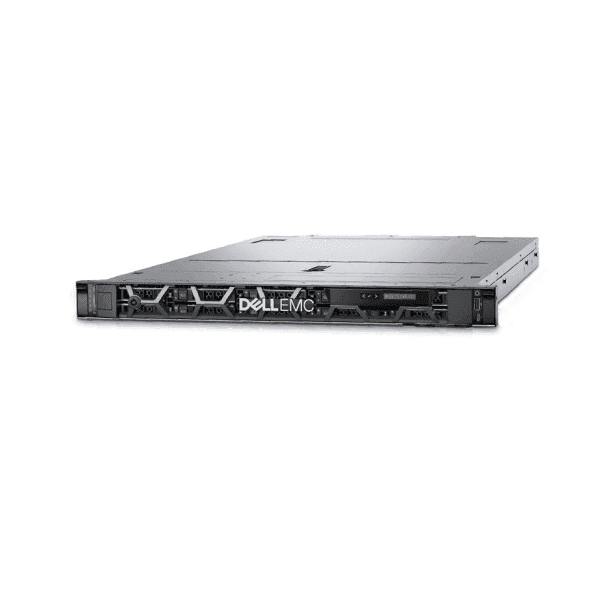

Dell PowerEdge R650 8SFF Rack Server
Dell R650 8SFF
Dell R650 8SFF Server – Dell PowerEdge R650 Server
Dell R650 8SFF Server
Dell R650 8SFF Server Specification
Dell R650 8SFF Server Specification | |
| Processor | Up to two 3rd Generation Intel® Xeon® Scalable processors with up to 24 cores per processor |
| Operating System | (Dell Technologies recommends Windows 11 Pro for business) Canonical® Ubuntu® Server LTS Citrix® Hypervisor® Microsoft® Windows Server® with Hyper-V Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi® |
| Chipset | Intel®C620A chipset |
| Accelerators | Up to three 75 W single-width GPU |
| Memory | DIMM Speed Up to 3200 MT/s
Memory Type RDIMM LRDIMM NVDIMM Intel® Persistent Memory 200 series (BPS)
Memory Module Slots 32 DDR4 DIMM slots
Maximum RAM RDIMM 2 TB LRDIMM 4TB NVDIMM 128 GB Intel® Persistent Memory 200 series (BPS) 8TB |
| Storage | Front Bays Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153 TB Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.8 TB Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB
Rear bays Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.7 TB |
| Storage Controllers | Internal Controllers PERC H745, H345, HBA355I, H755, H755N
External Controllers PERC H840, HBA355E
Software RAID S150
Internal Boot Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs 240 GB or 480 GB Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB Internal Dual SD Module or Internal USB 3.0 |
| Security
| Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Management | Embedded / At-the-Server iDRAC9 iDRAC Service Module iDRAC Direct Quick Sync 2 wireless module
Consoles OpenManage Enterprise OpenManage Power Manager plugin OpenManage SupportAssist plugin OpenManage Update Manager plugin
Mobility OpenManage Mobile
Tools iDRAC RESTful API with Redfish IPMI RACADM CLI System Update Utility Update Catalogs
OpenManage Integrations BMC® Truesight Microsoft® System Center Red Hat® Ansible® Modules VMware® vCenter and vRealize Operations Manager
OpenManage connections IBM Tivoli® Netcool/OMNIbus IBM Tivoli® Network Manager IP Edition Micro Focus® Operations Manager Nagios Core Nagios® XI |
| Power Supplies | 800 W Platinum AC/240 V Mixed Mode 1100 W Titanium AC/240 V Mixed Mode 1400 W Platinum AC/240 V Mixed Mode 1100 W DC -48 – 60 V Hot plug power supplies with full redundancy option |
| Ports | Network Options 2 x 1 GbE LOM and 1 x OCP 3.0 (x8 PCIe lanes) (optional)
Front Ports 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGA
Rear Ports 1 x USB 2.0 1 x USB 3.0 1 x Serial (optional) 2 x RJ-45 1 x VGA (optional for liquid cooling configuration)
Internal Ports 1 x USB 3.0 (optional) |
| Slots
| Up to 3 x PCIe Gen4 low profile slots (all x16 except one x8 slot with SNAPI I/O option) or 2 x PCIe (Gen4) full height slots
Video Card 1 x VGA (optional for liquid cooling configuration) |
| Bezel | Optional LCD bezel or security bezel |
| Form Factor | 1U rack server |
| Dimensions & Weight | Height 42.8 mm (1.68 inches)
Width 482 mm (18.97 inches)
Depth 809 mm (31.85 inches) – without bezel 822.84 mm (32.39 inches) – with bezel
Weight 21.2 kg (46.7 lbs) |
| Rack Support | ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks. |
| Recommended Support | Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. |
