Dell PowerEdge R440 Server

Dell PowerEdge R440 Servers -Dell 1U R440
Dell 1U R440 4216 (16 core, 32 thread, 2.10 GHz, 22 MB)/8G*1
/600G SAS 10K*1/H330/DVD/550W*2/3.5-4
Dell PowerEdge R440 Server
Dell 1U R440 4216/8G*1/600G SAS 10K*1/H330/DVD/550W*2/3.5-4 Overview
Dell PowerEdge R440 delivers the perfect combination of performance and density for HPC and web-tech deployments with a feature set right-sized for scale-out infrastructure environments. This model is the Dell PowerEdge R440 Server, including 1U Chassis, 4216*1 Processor, 8G*1 Memory, 600G SAS 10K*1, H330, DVD, 450W*1 Power Supply, 4 × 3.5inch Hard Drive slots.
Quick Spec
Table 1 shows the quick spec.
Model
Dell 1U R440 4216/8G*1/600G SAS 10K*1/H330/DVD/450W*1/3.5-4 Server
Description
Dell PowerEdge R440 Server, including 1U Chassis, 4216*1 Processor, 8G*1 Memory, 600G SAS 10K*1, H330, DVD, 450W*1 Power Supply, 4 × 3.5inch Hard Drive slots
Processor
Intel Xeon Scalable Processors 4216 (16-core, 2.1GHz, 22 MB)
Memory
8GB
Hard Drive
600G SAS 10K
Hard Drive slots
4 LFF
Power Supply
450W
Product Details

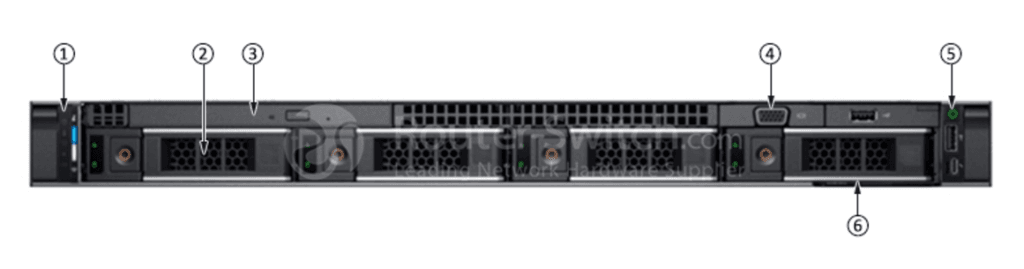

Figure 1 shows the front view of Dell R440 with 4LFF.
DELL 3F
Note:
Left control panel
VGA port
Drive slots
Right control panel
Optical drive (optional)
Information Tag

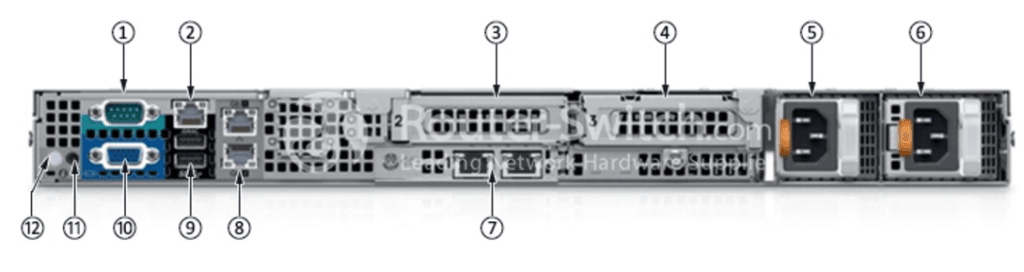

Figure 2 shows the rear view of Dell R440 with 1x PCIe slots available.
DELL 3H
Note:
Serial port
Ethernet ports (2)
iDRAC9 dedicated network port
USB 3.0 port (2)
Full height riser slot
VGA port
Power supply unit (PSU)
System status indicator cable port
Power supply unit (PSU)
System identification button
LOM riser ports (2)

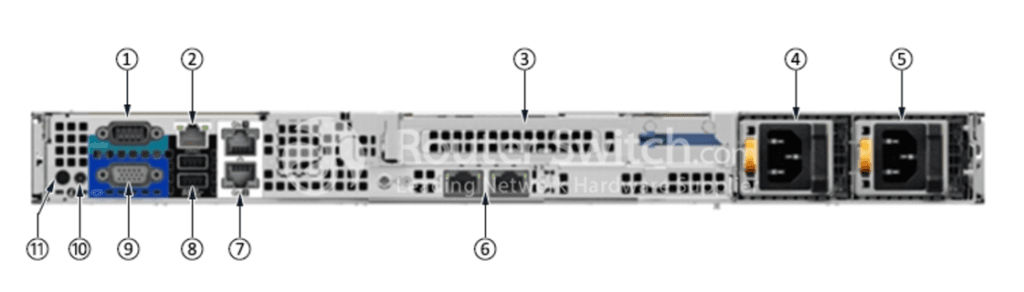

Figure 3 shows the rear view of Dell R440 with 2x PCIe slots available.
DELL 3G
Note:
Serial port
LOM riser ports (2)
iDRAC9 dedicated network port
Ethernet ports (2)
Low profile riser right slot
USB 3.0 port (2)
Low profile riser right slot
VGA port
Power supply unit (PSU)
System status indicator cable port
Power supply unit (PSU)
System identification button

1 1 1 2 1 3 1 4 1 5
