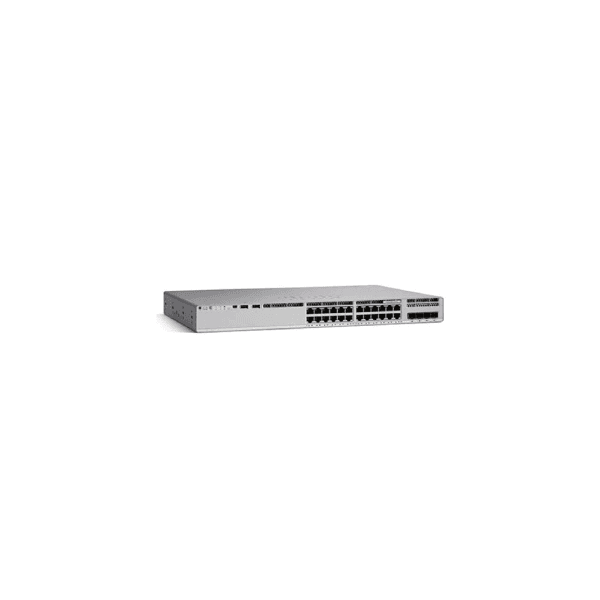

Cisco C9300X-48TX-E, - Cisco Catalyst 9300 Switches Series

C9300X-48TX-E Overview

The Cisco C9300X-48TX-E, part of the Catalyst 9300 series, is a high-performance network switch designed to meet the demands of modern enterprises. It offers advanced features and security capabilities to ensure seamless connectivity and network efficiency. Its robust architecture supports the latest networking standards, making it an ideal solution for various networking environments.

Quick Spec

Brand	Cisco
Model	C9300X-48TX-E
Series	Catalyst 9300
Ports	48 x 1G
Uplink Interfaces	4 x 10G

Product Features

High-Density 48 Gigabit Ethernet ports.
Advanced security features including ETA (Encrypted Traffic Analytics).
Modular uplink options with flexible choices.
Energy-efficient, supporting Energy Efficient Ethernet (EEE).
Enhanced programmability and automation capabilities.

Product Applications

Enterprise campus access switching with high-density port requirements.
Securely segmented networks for deployment in financial institutions.
Scalable and efficient network management in data centers.

C9300X-48TX-E Specification

C9300X-48TX-E Specifications
Brand	Cisco
Model	C9300X-48TX-E
Series	Catalyst 9300
Ethernet Ports	48 x 10/100/1000 (48 x 1G)
Network Module Uplinks	4 x 10GE SFP+
Switching Capacity	320 Gbps
Forwarding Rate	240 Mpps
Max. VLANs	4096
Stacking Bandwidth	480 Gbps
DRAM	8 GB
Flash Memory	16 GB
Layer Support	Layer 2 and Layer 3
PoE	No PoE support
Management	CLI, Web-based, SNMP
Operating System	Cisco IOS XE
Dimensions	1.73 x 17.5 x 19 inches
Weight	14.6 Pounds
Power Supply	Dual redundant, hot-swappable
Fan	Field-replaceable
Operating Temperature	32°F to 104°F (0°C to 40°C)
Warranty	Limited Lifetime
MTBF	206,480
