Cisco C9300X-24Y-A - Cisco Catalyst 9300 Switches Series

Cisco C9300X-24Y-A – Cisco Catalyst 9300 Switches Series

(1 customer review)

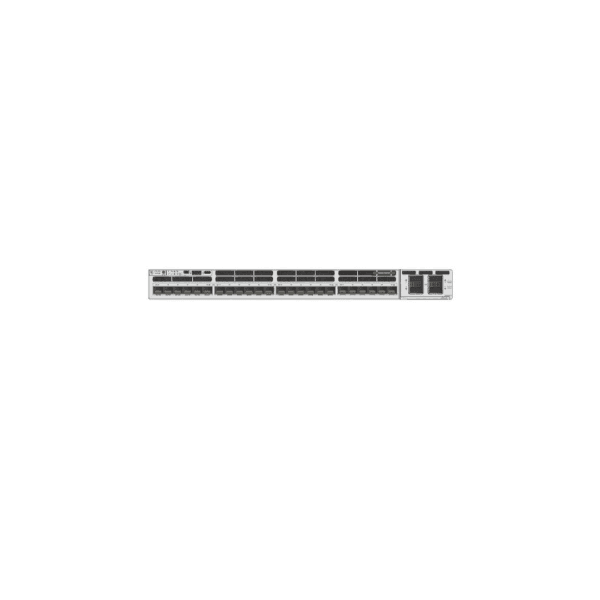

C9300X-24Y-A Switch

Catalyst 9300 24-port 25G/10G/1G SFP28

with modular uplinks, Network Advantage

Add to quote
Category:

Cisco C9300X-24Y-A Overview

The Cisco Catalyst 9300 Series switches are ciscos lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. It sets new maximums for network scale.

Quick Specs

Table 1 shows the Quick Specs.

Product CodeC9300X-24Y-A
Product DescriptionCatalyst 9300 24-port 25G/10G/1G SFP28 with modular uplinks, Network Advantage
Device TypeSwitch – 24 ports – L3 – managed – stackable
Enclosure TypeRack-mountable 1U
Subtype25 Gigabit Ethernet
Ports24 x 1/10/25 Gigabit SFP28
RAM16 GB
Flash Memory16 GB
Interfaces24 x 1/10/25GBase-X SFP28



C9300X-24Y-A Specification



C9300X-24Y-A Specifications

General
Device TypeSwitch – 24 ports – L3 – managed – stackable
Enclosure TypeRack-mountable 1U
Subtype25 Gigabit Ethernet
Ports24 x 1/10/25 Gigabit SFP28
PerformanceSwitching capacity: 2000 Gbps ¦ Switching capacity with stacking: 3000 Gbps ¦ Forwarding rate: 1488 Mpps ¦ Forwarding rate with stacking: 2232 Mpps
CapacityIPv4 routing table entries: 39000 ¦ IPv6 routing table entries: 19500 ¦ Flexible NetFlow entries: 128000 ¦ VLAN IDs: 4094 ¦ Switched virtual interfaces (SVIs): 1000 ¦ Packet buffer size: 32 MB ¦ MAC addresses: 32000 ¦ Multicast routing flow table: 8000 ¦ QoS scale entries: 4000 ¦ ACL scale entries: 5000 ¦ PVST instances: 1000 ¦ STP Virtual Ports for PVST: 13000 ¦ STP Virtual Ports for MST: 1000 ¦ Jumbo frame size: 9198 byte
MAC Address Table Size32000 entries
Jumbo Frame Support9198 bytes
Routing ProtocolOSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management ProtocolSNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Encryption Algorithm128-bit AES
FeaturesDHCP support, trunking, Syslog support, full duplex mode, Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), Multicast Source Discovery Protocol (MSDP), 802.1x authentication, 16MB packet buffer, FTP client, MACsec support, 3 fans, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Application Visibility and Control (AVC), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Layer 3 VPN (L3VPN) support, Encapsulated Remote SPAN (ERSPAN), Security Group Tag (SGT) caching, Security Group Access Control List (SGACL), IT Service Management (ITSM) integration, third-party IP Address Management (IPAM) integration, Cisco StackWise-1T technology
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
RAM16 GB
Flash Memory16 GB
Status IndicatorsStatus
Expansion / Connectivity
Interfaces24 x 1/10/25GBase-X SFP28 ¦ 1 x USB 2.0
Expansion Slots1 (total) / 1 (free) x expansion slot
Power
Power DeviceInternal power supply
Power Provided715 Watt
Voltage RequiredAC 120/230 V (50/60 Hz)
Miscellaneous
Compliant StandardsCISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1
Dimensions & Weight
Dimensions (H x W x D) inches
1.73 x 17.5 x 17.6
Weight (with default power supply)16.2 Pounds
MTBF (hours)249,350
Manufacturer Warranty
Service & SupportLimited warranty – replacement – lifetime – response time: next business day ¦ Technical support – consulting – 90 days
Environmental Parameters
Min Operating Temperature23 °F
Max Operating Temperature113 °F
Humidity Range Operating5 – 90% (non-condensing)
Min Storage Temperature-40 °F
Max Storage Temperature158 °F
Humidity Range Storage5 – 90% (non-condensing)
