Cisco C9300X-24HX-A – Cisco Catalyst 9300 Switches Series

Cisco C9300X-24HX-A

Catalyst 9300

Category:

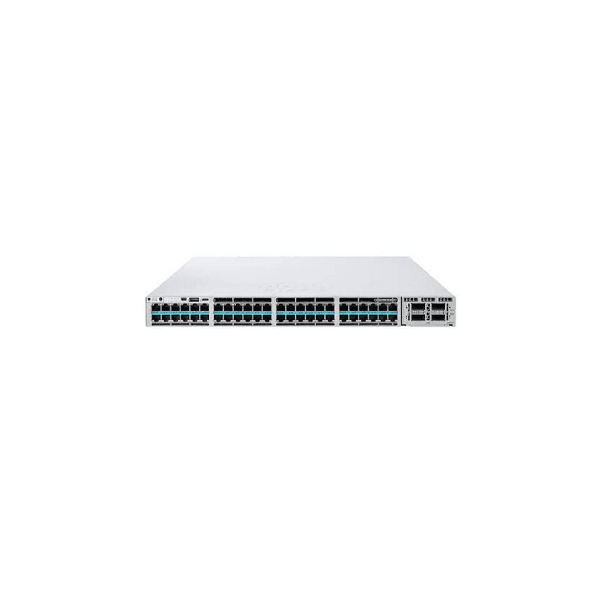

Cisco C9300X-24HX-A Overview

The Cisco C9300X-24HX-A is a robust and advanced model in the Catalyst 9300 series. Designed to provide enhanced security, performance, and connectivity, it is tailored for the growing demands of modern enterprise networks. Its modular design and stackable capabilities make it ideal for network expandability and scalability, ensuring it can meet diverse networking needs efficiently.

Quick Spec

BrandCisco
ModelC9300X-24HX-A
SeriesCatalyst 9300
Ports24 x Multigigabit Ethernet
Uplink4 x 10G/25G

Product Features

  • Modular stackable design for network scalability
  •  Advanced security features with Cisco TrustSec
  •  Enhanced performance with 4 x 10G/25G uplinks
  •  Support for advanced Layer 2 and Layer 3 features
  • Integrated Power over Ethernet (PoE) capability

Product Applications

  •  Enterprise campus networks requiring high bandwidth and performance● Branch offices needing secure and scalable network solutions
  •  Organizations with high-density networking requirements



C9300X-24HX-A Specification



C9300X-24HX-A Specifications

BrandCisco
ModelC9300X-24HX-A
Product LineCatalyst 9300
Ports24 x 10G & 24 x 1G Multigigabit
Uplink Interfaces4 x 25G
Stacking Bandwidth480 Gbps
Forwarding Rate720 Mpps
Switching Capacity520 Gbps
DRAM16 GB
Flash Memory16 GB
Power Supply950W AC
RedundancyYes (Power Supply and Fans)
Dimensions1.73 x 17.5 x 17.5 in (H x W x D)
PerformanceEnterprise-class performance
ManagementCloud and On-Prem
Operating Temperature23?? to 113??F (-5?? to 45??C)
Humidity0% to 95% non-condensing
AirflowFront-to-back
Environmental StandardsRoHS
SecurityMACsec, TrustSec
