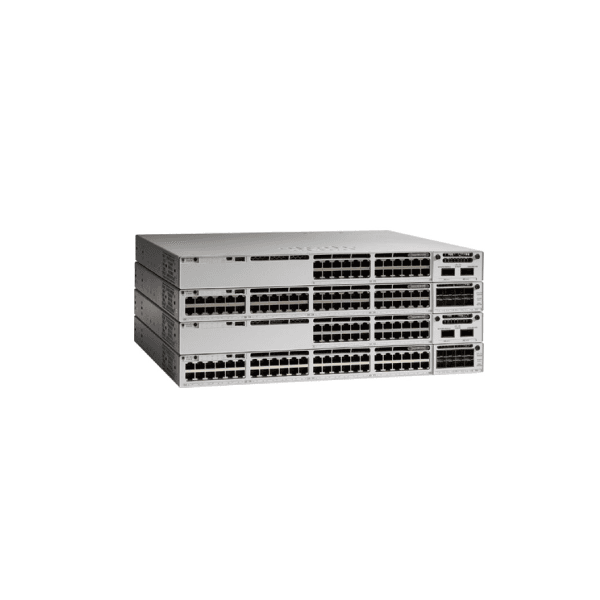

Cisco C9300L-24P-4G-E Overview

Cisco Catalyst 9300 Series is the next generation of the industrys most widely deployed stackable switching platform. Built for security, IoT, and the cloud, these network switches form the foundation for Ciscos Software-Defined Access, our leading enterprise architecture. Cisco Catalyst 9300L switches are the Catalyst 9300 switches with fixed modules.

Product Details

Table 1 shows the quick spec.

Model	C9300L-24P
Total 10/100/1000, Multigigabit copper or SFP Fiber	24 port PoE+
Uplink Configuration	Modular uplinks
Default AC power supply	715W AC

C9300L-24P-4G-E Specification

C9300L-24P-4G-E Specifications
Dimensions (H x W x D) inches	1.73 X 17.5 X 16.1
Weights	14.99 Pounds
MTBF (hours)	314,140
Designed to replace	Catalyst 3850
Supported IOS	Network Advantage, Network Essentials
Network modules options	Fixed Modules
Stack Technology	StackWise-320
Stacking bandwidth	320 Gbps
Total number of MAC addresses	32,000
Total number of IPv4 routes (ARP plus learned routes)	32,000 (24,000 direct routes and 8000 indirect routes)
IPv4 routing entries	-
IPv6 routing entries	16,000
Multicast routing scale	8,000
QoS scale entries	5,120
ACL scale entries	5,120
Packet buffer per SKU	16 MB buffer for 24 and 48 port Gigabit Ethernet models
Flexible NetFlow (FNF) entries	64,000 flow on 24- and 48-port Gigabit Ethernet models
DRAM	8 GB
Flash	16 GB
VLAN IDs	4094
Total Switched Virtual Interfaces (SVIs)	1000
Jumbo frames	9198 bytes
Switching capacity	56 Gbps - 176 Gbps
Forwarding rate	41.66 Mpps - 130.95 Mpps
