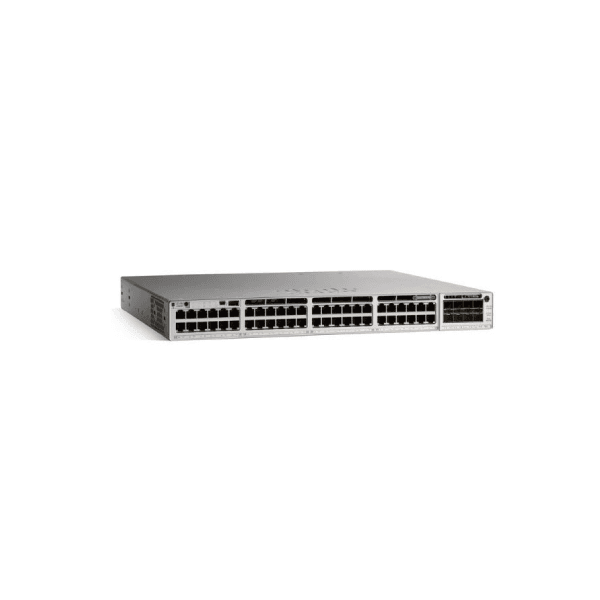

Cisco C9300-48P-E - Cisco Switch Catalyst 9300 Switches Series,

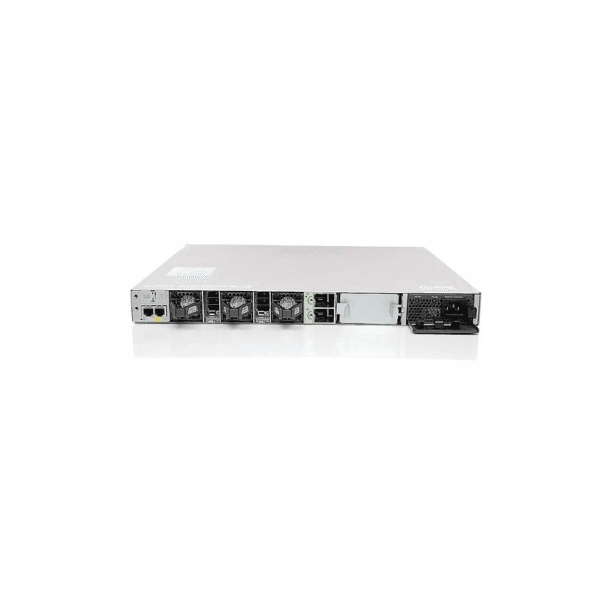

Cisco C9300-48P-E - Cisco Switch Catalyst 9300 Switches Series, - Image 2

Cisco C9300-48P-E – Cisco Switch Catalyst 9300 Switches Series,

C9300-48P-E – Cisco Switch Catalyst 9300

Catalyst 9300 48-port 1G copper with modular

uplinks, PoE+, Network Essentials

Add to quote
Category:

Cisco C9300-48P-E Overview

The Cisco Catalyst 9300 Series Switches are Ciscos lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. C9300-48P-E is 48-port PoE+, Network EssentialsSwitch of 9300 series. Catalyst 9300 Seriesare the next generation of the industrys most widely deployed switching p

Quick Spec

Table 1 shows the quick spec.

Product CodeC9300-48P-E
Product DescriptionCatalyst 9300 48-port PoE+, Network Essentials
Total 10/100/1000 or Multigigabit copper ports48POE+
Default AC power supply715W AC
Available PoE power437W
Dimensions (H x W x D)1.73 x 17.5 x 17.5 Inches
Weight16.33 Pounds



C9300-48P-E Specification



C9300-48P-E Specifications

Part NumberC9300-48P-E
Total 10/100/1000 or Multigigabit copper ports48 POE+
Default AC power supply715W AC
Available PoE power437W
Cisco StackWise-480Yes
Cisco StackPowerYes
Default power supplyPWR-C1-715WAC-P/2
Switching capacity256 Gbps on 48-port Gigabit Ethernet model
Stacking bandwidth480 Gbps
Total number of MAC addresses32,000
Total number of IPv4 routes (ARP plus learned routes)32,000 (24,000 direct routes and 8000 indirect routes)
IPv4 routing entries32,000
IPv6 routing entries16,000
Multicast routing scale8000
QoS scale entries5120
ACL scale entries5120
Packet buffer per SKU16 MB buffer for 24- or 48-port Gigabit Ethernet models
FNF entries64,000 flow on 24- and 48-port Gigabit Ethernet models
DRAM8 GB
Flash16 GB
VLAN IDs4000
Total Switched Virtual Interfaces (SVIs)2000
Jumbo frames9198 bytes
Total routed ports per 9300 Series stack208
Wireless bandwidth per switchUp to 96 Gbps on 48-port Gigabit Ethernet model
Forwarding rate154.76 Mpps
Dimensions (H x W x D)1.73 x 17.5 x 17.5 Inches
Weight16.33 Pounds
Mean time between failures (hours)299,000
Safety certifications●  UL 60950-1

●  CAN/CSA-C222.2 No. 60950-1

●  EN 60950-1

●  IEC 60950-1

●  AS/NZS 60950.1

●  IEEE 802.3

Electromagnetic emissions certifications●  47 CFR Part 15

●  CISPR22 Class A

●  EN 300 386 V1.6.1

●  EN 55022 Class A

●  EN 55032 Class A

●  CISPR 32 Class A

●  EN61000-3-2

●  EN61000-3-3

●  ICES-003 Class A

●  TCVN 7189 Class A

●  V-3 Class A

●  CISPR24

●  EN 300 386

●  EN55024

●  TCVN 7317

EnvironmentalReduction of Hazardous Substances (ROHS) 5
