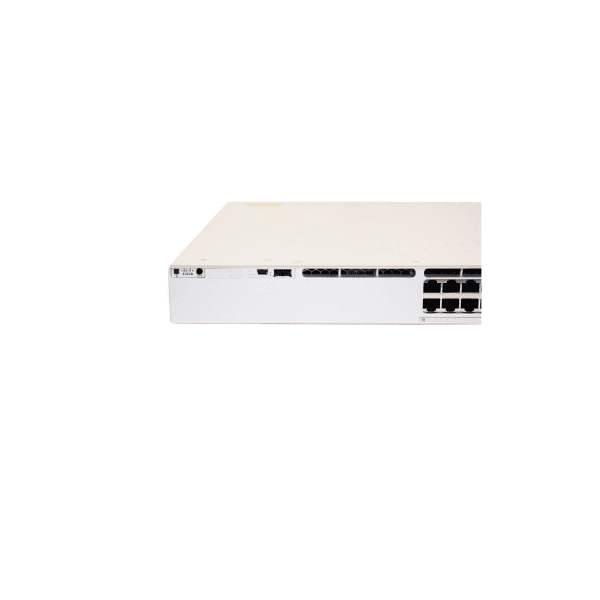

Cisco C9300-24P-A - Cisco Switch Catalyst 9300 Switches Series

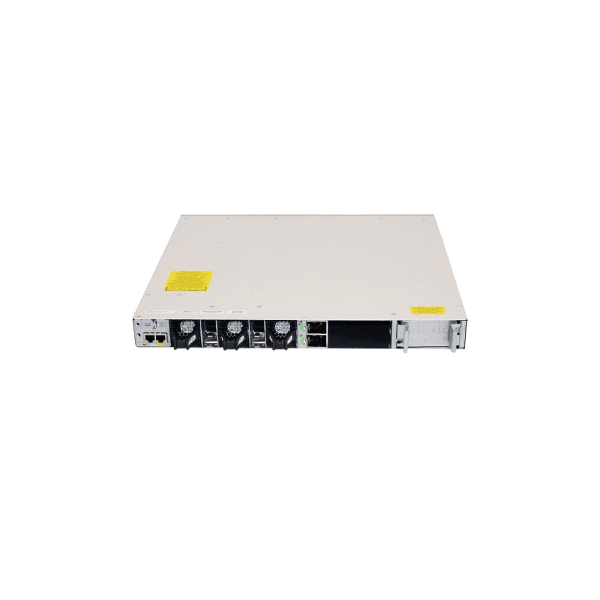

Cisco C9300-24P-A - Cisco Switch Catalyst 9300 Switches Series - Image 2

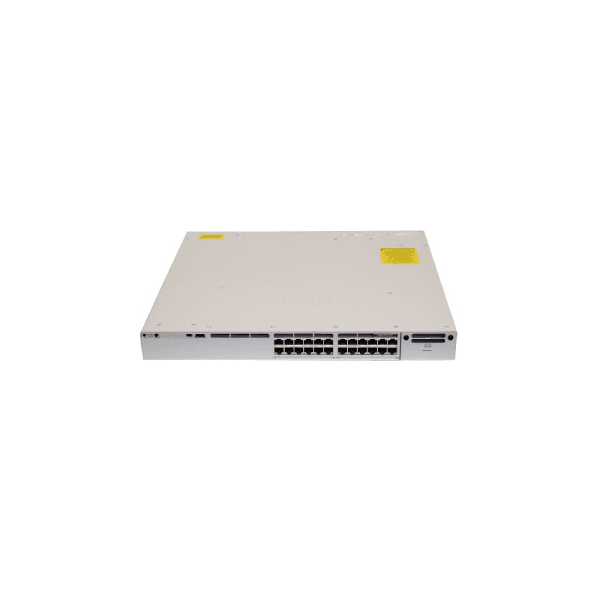

Cisco C9300-24P-A - Cisco Switch Catalyst 9300 Switches Series - Image 3

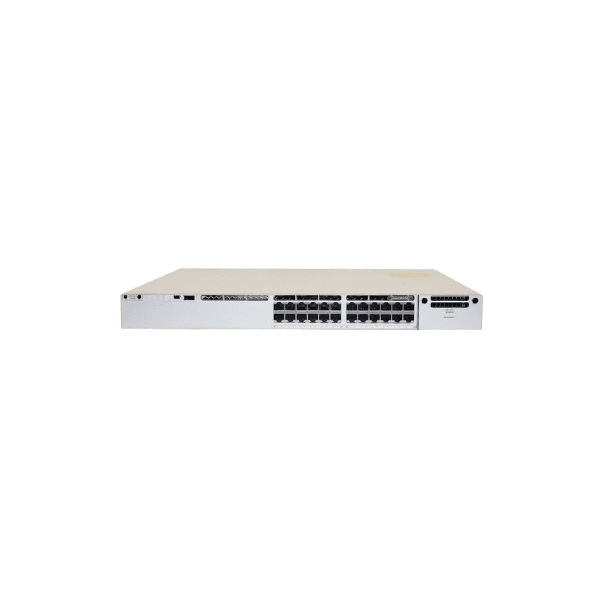

Cisco C9300-24P-A - Cisco Switch Catalyst 9300 Switches Series - Image 4

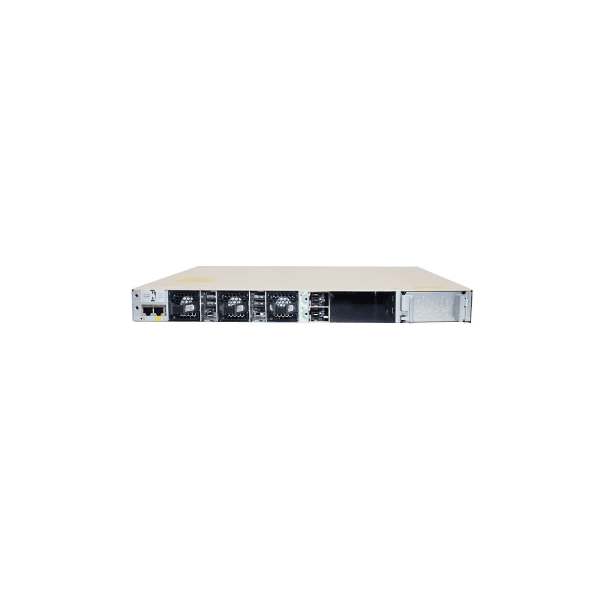

Cisco C9300-24P-A - Cisco Switch Catalyst 9300 Switches Series - Image 5

Cisco C9300-24P-A – Cisco Switch Catalyst 9300 Switches Series

C9300-24P-A – Cisco Switch Catalyst 9300

Catalyst 9300 24-port 1G copper with modular

uplinks, POE+, Network Advantage

Add to quote
Category:

Cisco -C9300-24P-A Overview

The Cisco® Catalyst® 9300 Series Switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. C9300-24P-A is 24-port PoE+, Network Advantage Switch of 9300 series.

Quick Spec

Table 1 shows the quick spec.

Product CodeC9300-24P-A
Product DescriptionCatalyst 9300 24-port PoE+, Network Advantage
Total 10/100/1000 or Multigigabit copper ports24 POE+
Default AC power supply715W AC
Available PoE power445W
Dimensions (H x W x D)1.73 x 17.5 x 17.5 Inches
Weight16.33 Pounds

Product Details

The module slot on the right of the front panl dosen’t include the module. Network Modules (providing 1G/10G/40G ports) should be purchased seperately.



①Blue Beacon-for easy of serviceability
②optional wireless console access with Bluetooth
③Best HA-NSF/SSO
④24 1G ports



①Local Storage USB 3.0 SSD pluggable
②Stackwise-480-Industry’s highest stack bandwidth
③Modular,Redundant Fans
④Intellgent Power management-Cisco StackPower
⑤Optional Power Supply
⑥High- Efficiency Power Supply

C9300-24P-A Specification



C9300-24P-A Specifications

Part NumberC9300-24P-A
Total 10/100/1000 or Multigigabit copper ports24 POE+
Default AC power supply715W AC
Available PoE power445W
Cisco StackWise-480Yes
Cisco StackPowerYes
Default power supplyPWR-C1-715WAC-P/2
Switching capacity208 Gbps on 24-port Gigabit Ethernet model
Stacking bandwidth480 Gbps
Total number of MAC addresses32,000
Total number of IPv4 routes (ARP plus learned routes)32,000 (24,000 direct routes and 8000 indirect routes)
IPv4 routing entries32,000
IPv6 routing entries16,000
Multicast routing scale8000
QoS scale entries5120
ACL scale entries5120
Packet buffer per SKU16 MB buffer for 24- or 48-port Gigabit Ethernet models
FNF entries64,000 flow on 24- and 48-port Gigabit Ethernet models
DRAM8 GB
Flash16 GB
VLAN IDs4000
Total Switched Virtual Interfaces (SVIs)2000
Jumbo frames9198 bytes
Total routed ports per 9300 Series stack208
Wireless bandwidth per switchUp to 48 Gbps on 24-port Gigabit Ethernet model
Forwarding rate154.76 Mpps
Dimensions (H x W x D)1.73 x 17.5 x 16.1 Inches
Weight16.33 Pounds
Mean time between failures (hours)299,000
Safety certifications●  UL 60950-1

●  CAN/CSA-C222.2 No. 60950-1

●  EN 60950-1

●  IEC 60950-1

●  AS/NZS 60950.1

●  IEEE 802.3

Electromagnetic emissions certifications●  47 CFR Part 15

●  CISPR22 Class A

●  EN 300 386 V1.6.1

●  EN 55022 Class A

●  EN 55032 Class A

●  CISPR 32 Class A

●  EN61000-3-2

●  EN61000-3-3

●  ICES-003 Class A

●  TCVN 7189 Class A

●  V-3 Class A

●  CISPR24

●  EN 300 386

●  EN55024

●  TCVN 7317

EnvironmentalReduction of Hazardous Substances (ROHS) 5
