Cisco C1200-48P-4X – Cisco Switches – Cisco Catalyst 1200 Series Switches

C1200-48P-4X

Cisco C1200-48P-4X – Cisco Switches,48x 10/100/1000 PoE+ ports with 375W power budget, 4x 10 Gigabit SFP+, Rack-mountable

C1200-48P-4X Overview

The Cisco C1200-48P-4X is a high-performance network switch designed to meet the connectivity needs of modern organizations. Equipped with 48x 10/100/1000 PoE+ ports, it provides robust and efficient Power over Ethernet capabilities, perfect for powering IP cameras, phones, and wireless access points. Part of the reliable Cisco C1200 series, this switch ensures seamless network management and enhanced security features.

Quick Spec

Ports48x 10/100/1000 PoE+
Form Factor1U Rackmount
Total PoE Power Budget740W
Uplink Ports4x 10G SFP+
SeriesCisco C1200

Product Features

  •  48x 10/100/1000 PoE+ ports for easy device connectivity
  •  Advanced security features including IEEE 802.1x and port security
  • 1U rackmount form factor for efficient space utilization
  • 4x 10G SFP+ uplink ports for high-speed data transfer
  • Easy-to-use web-based interface for optimal management

Product Applications

  • Powering IP surveillance systems in large office buildings
  •  Providing network connectivity for VoIP phones in call centers
  •  Deploying wireless access points in campus environments for improved wireless coverage

Supported Options

AccessoryModel
SFP+ TransceiverSFP-10G-SR
Rack Mount KitRCKMNT-1RU
Power CableCAB-3KX-AC

C1200-48P-4X Specification



C1200-48P-4X Specifications

Capacity in millions of packets per second (mpps) (64-byte packets)130.94
Switching capacity in gigabits per second (Gbps)
176.0
Power dedicated to PoE375W
Number of ports that support PoE48
System power consumption

110V=47.44W

220V=47.03W

Power consumption (with PoE)

110V=462.84W

220V=449.48W

Heat dissipation (BTU/hr)1579.28
Idle Power

110V=20.51W

220V=20.27W

Total system ports48x Gigabit Ethernet +
4x 10 Gigabit Ethernet
RJ-45 ports48x Gigabit Ethernet
Combo ports (RJ-45 + Small Form-Factor Pluggable [SFP])4x SFP+
Packet buffer3 MB
Unit dimensions
(W x D x H)
445 x 350 x 44 mm (17.5 x 13.78 x 1.73 in)
Unit weight5.43 kg (11.97 lb)
Fan (number)1
Acoustic noise25°C: 37.3 dBA
MTBF at 25°C (hours)856,329

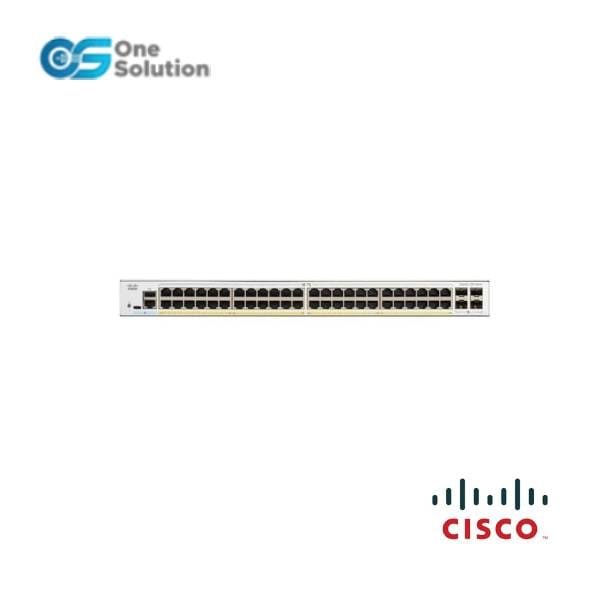

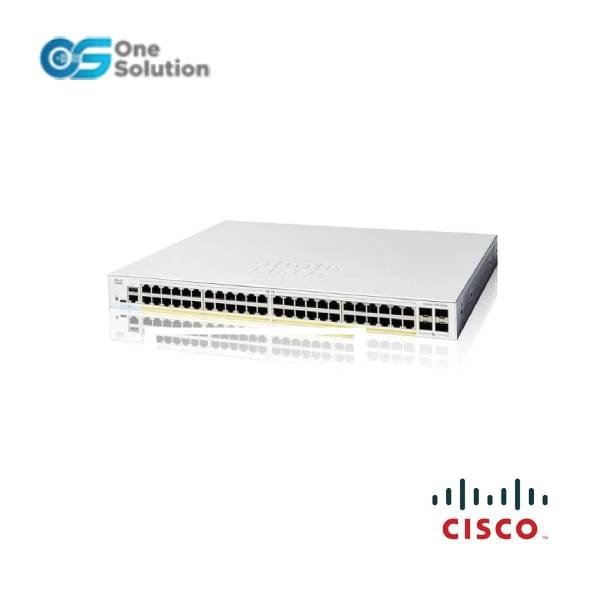

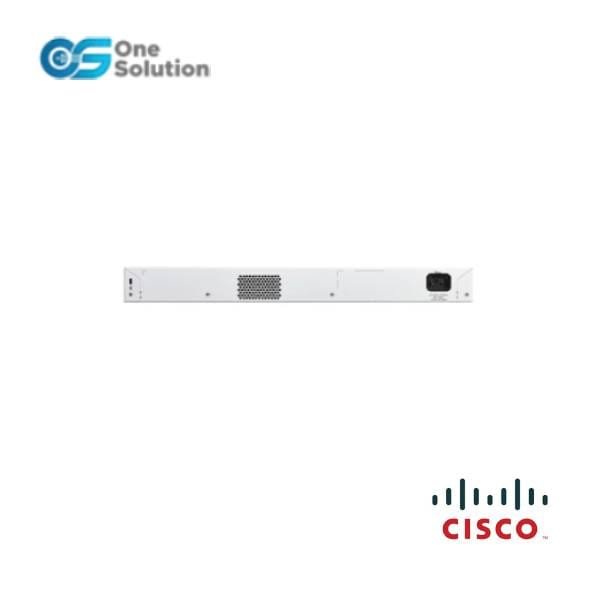

c1200 48p 4x c1200 48p 4x 1 c1200 48p 4x 2
