Description

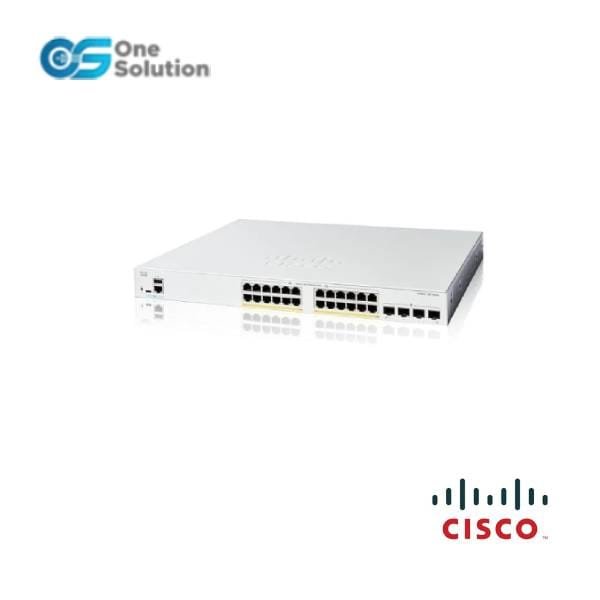

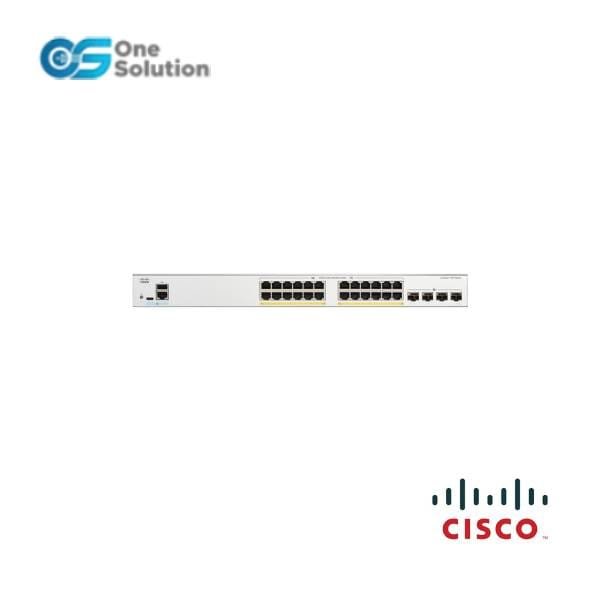

Cisco C1200-24P-4X Overview
The Cisco C1200-24P-4X is a versatile and robust network switch designed to enhance performance and scalability for growing networks. With 48x 10/100/1000 PoE+ ports, it offers extensive connectivity options that cater to a wide range of business needs. Ideal for small to medium-sized enterprises, this switch ensures reliable and efficient network management.
Quick Spec
| Model | C1200-24P-4X |
| Brand | Cisco |
| Ports | 48x 10/100/1000 PoE+ ports |
| Uplinks | 4x 10G SFP+ |
| Power Budget | 370W |
Product Features
- 48 PoE+ Ports providing up to 30W per port
- 4x 10G SFP+ Uplink Ports
- Enhanced Security Features with Access Control Lists (ACLs)
- Energy Efficient Ethernet for reduced power consumption
- Advanced Layer 2 and Layer 3 Network Management Capabilities
Product Applications
- Optimized for Office Network Infrastructure to support VoIP and Video Surveillance
- Efficient for School Networks requiring multiple PoE devices like IP cameras and access points
- Ideal for Retail Environments demanding robust Point-of-Sale system integration and Wi-Fi coverage
C1200-24P-4X Specification
C1200-24P-4X Specifications |
|
| Capacity in millions of packets per second (mpps) (64-byte packets) | 95.23 |
| Switching capacity in gigabits per second (Gbps) |
128.0 |
| Power dedicated to PoE | 195W |
| Number of ports that support PoE | 24 |
| System power consumption |
110V=30.2W 220V=31.6W |
| Power consumption (with PoE) |
110V=240.4W 220V=236.3W |
| Heat dissipation (BTU/hr) | 819.7 |
| Idle Power |
110V=13.9W 220V=15.2W |
| Total system ports | 24x Gigabit Ethernet + 4x 10 Gigabit Ethernet |
| RJ-45 ports | 24x Gigabit Ethernet |
| Combo ports (RJ-45 + Small Form-Factor Pluggable [SFP]) | 4x SFP+ |
| Packet buffer | 1.5 MB |
| Unit dimensions (W x D x H) |
445 x 299 x 44 mm (17.5 x 11.77 x 1.73 in) |
| Unit weight | 3.68 kg (8.11 lb) |
| Fan (number) | Fanless |
| Acoustic noise | – |
| MTBF at 25°C (hours) | 698,220 |
