Cisco C1000FE-24T-4G-L - Cisco Switch Catalyst 1000 Series Switches

—

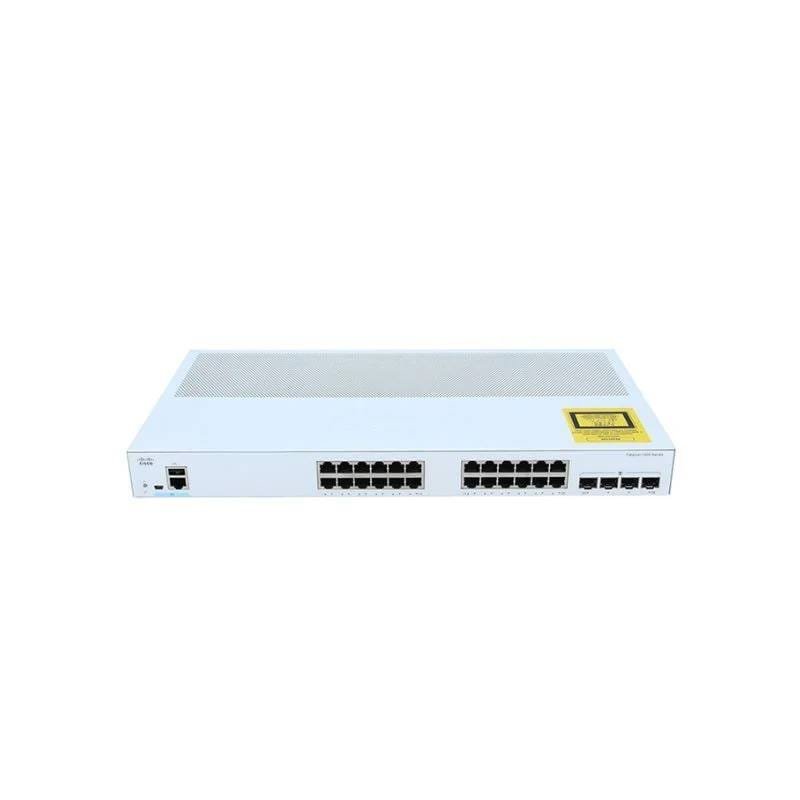

Cisco C1000FE-24T-4G-L

24x 10/100 Ethernet ports, 2x 1GSFP and RJ-45 combo uplinks and 2x 1G SFP uplinks

The Cisco C1000FE-24T-4G-L is a versatile and reliable network switch belonging to the Catalyst 1000 series, specifically designed for small businesses and branch offices.

🛡️

Official Warranty

🚚

Fast Delivery

🔄

30-Day Returns

Cisco C1000FE-24T-4G-L Overview

The Cisco C1000FE-24T-4G-L is a versatile and reliable network switch belonging to the Catalyst 1000 series, specifically designed for small businesses and branch offices. Its robust features and compact design make it ideal for environments where space and budget are limited, yet high performance and efficiency are essential.

Quick Spec

Brand	Cisco
Model	C1000FE-24T-4G-L
Ports	24 Fast Ethernet Ports
Uplink Ports	2x 1G SFP, 2x 1G Combo
Series	Catalyst 1000

Product Features

Integrated support for data, voice, and video services
Enhanced security features including access control lists and threat defense
Energy-efficient design to reduce operational costs
Web-based configuration interface for easy management
Layer 2 advanced switching capabilities

Product Applications

Ideal for small business office networking
Suitable for branch office connectivity
Perfect for educational institutions requiring network expansion

Supported Options

Option	Model
SFP Transceiver	GLC-LH-SM
Rack Mount Kit	CMP-RACK-MNT
Power Supply	PD-9001GR-AC

Cisco C1000FE-24T-4G-L Specification

Cisco C1000FE-24T-4G-L Specifications
Console ports
RJ-45 Ethernet	1
SUSB-A port for storage and Bluetooth console	1
Memory and processor
CPU	ARM v7 800 MHz
DRAM	512 MB
Flash memory	256 MB
Performance
Forwarding bandwidth	FE: 6.4 Gbps 1G: 28 Gbps 10G: 64 Gbps
Switching bandwidth	FE: 12.8 Gbps 1G: 56 Gbps 10G: 128 Gbps
Forwarding rate (64‑byte L3 packets)	FE: 9.52 Mpps 1G: 41.67 Mpps 10G: 95.23 Mpps
Unicast MAC addresses	16000
Jumbo Ethernet frame	10,240 bytes
MTBF in hours (data)	2,026,793
MTBF in hours (PoE)	698,220
MTBF in hours (Full PoE)	698,220
Environmental
Operating temperature	Sea level: -5 to 50°C* Up to 5,000ft (1500 m): -5 to 45°C Up to 10,000 (3000 m): -5 to 40°C
Storage temperature	-13 to 158°F (-25 to 70°C)
Operating altitude	10,000 ft (3,000m)
Storage altitude	15,000 ft (4500m)
Storage relative humidity	5% to 95% at 65 deg C (non-condensing)
