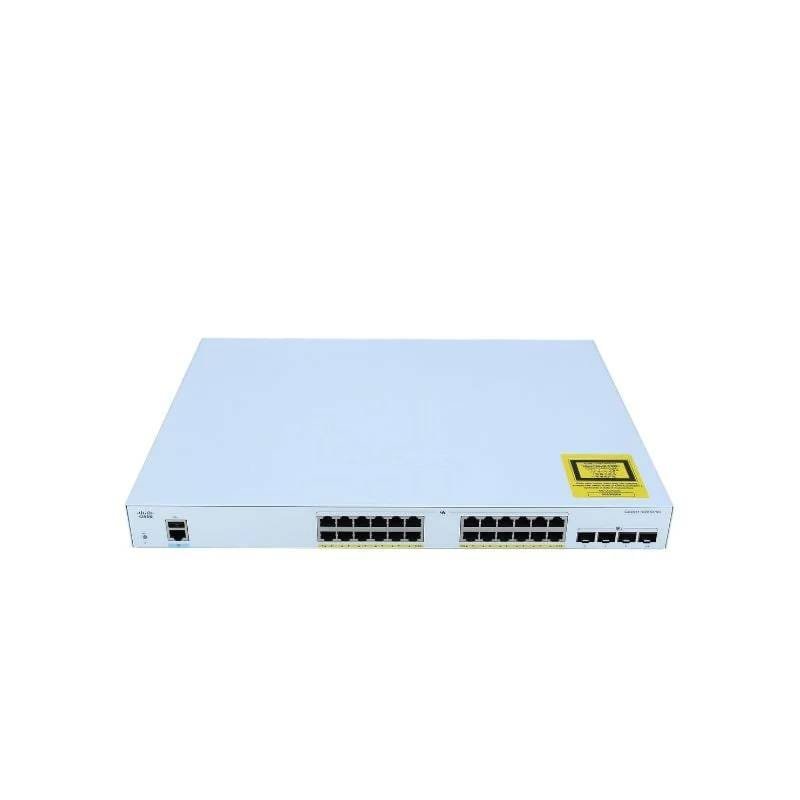

C1000-24FP-4X-L

24x 10/100/1000 Ethernet PoE+ ports and 370W PoE budget, 4x 10G SFP+ uplinks

Cisco Catalyst 1000 Series Switches are fixed-managed Gigabit Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices.



Add to quote
Categories: ,

Cisco C1000-24FP-4X-L  Overview

Cisco Catalyst 1000 Series Switches are fixed-managed Gigabit Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices. These are simple, flexible and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments. Cisco Catalyst 1000 operates on Cisco IOS Software and supports simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for small organizations.

Quick Specs

Table 1 shows the Quick Specs.

Product Code

C1000-24FP-4X-L

Description24x 10/100/1000 Ethernet PoE+ ports and 370W PoE budget, 4x 10G SFP+ uplinks
Gigabit Ethernet ports24
Uplink interfaces4 SFP+
PoE+power budget370W
FanlessN
Dimensions (WxDxH in inches)17.5 x 13.59 x 1.73
CPUARM v7 800 MHz
DRAM512 MB
Flash memory256 MB
Forwarding bandwidth64Gbps
Switching bandwidth128 Gbps
Forwarding rate(64 byte L3 packets)41.67 Mpps

Product Details

The Cisco Catalyst 1000 Series Switches provides these features:

  • 8, 16, 24, or 48 Gigabit Ethernet data or PoE+ ports with line-rate forwarding
  • 2 or 4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP)/RJ 45 Combo uplinks or 4 fixed 0 Gigabit Ethernet Enhanced SFP (SFP+) uplinks
  •  Perpetual PoE+ support with a power budget of up to 740W
  •  CLI and/or intuitive web UI manageability options
  •  Network monitoring through sampled flow (sFlow)
  • Security with 802.1X support for connected devices, Switched Port Analyzer (SPAN), and Bridge Protocol Data Unit (BPDU) Guard
  • Compact fanless models available with a depth of less than 13 inches (33 cm)
  •  Device management support with over-the-air access via Bluetooth, Simple Network Management Protocol (SNMP), RJ-45, or USB console access
  •  Reliability with a higher Mean Time Between Failures (MTBF) and an enhanced limited lifetime warranty support(E-LLW)

C1000-24FP-4X-L Specification



C1000-24FP-4X-L Specifications

Console ports
RJ-45 Ethernet1
SUSB-A port for storage and Bluetooth console1
Memory and processor
CPUARM v7 800 MHz
DRAM512 MB
Flash memory256 MB
Performance
Forwarding bandwidthFE: 6.4 Gbps

1G: 28 Gbps

10G: 64 Gbps

Switching bandwidthFE: 12.8 Gbps

1G: 56 Gbps

10G: 128 Gbps

Forwarding rate
(64‑byte L3 packets)		FE: 9.52 Mpps

1G: 41.67 Mpps

10G: 95.23 Mpps

Unicast MAC addresses16000
Jumbo Ethernet frame10,240 bytes
MTBF in hours (data)2,026,793
MTBF in hours (PoE)698,220
MTBF in hours (Full PoE)698,220
Environmental
Operating temperatureSea level: -5 to 50°C*

Up to 5,000ft (1500 m): -5 to 45°C

Up to 10,000 (3000 m): -5 to 40°C

Storage temperature-13 to 158°F (-25 to 70°C)
Operating altitude10,000 ft (3,000m)
Storage altitude
15,000 ft (4500m)
Storage relative humidity
5% to 95% at 65 deg C (non-condensing)
