Dell PowerEdge R760xs 2-Way 2U 8-Bay 3.5-inch 16th Generation Rack Server

Jefferson — Fri, 31 Jan 2025 09:16:28 +0000

Description

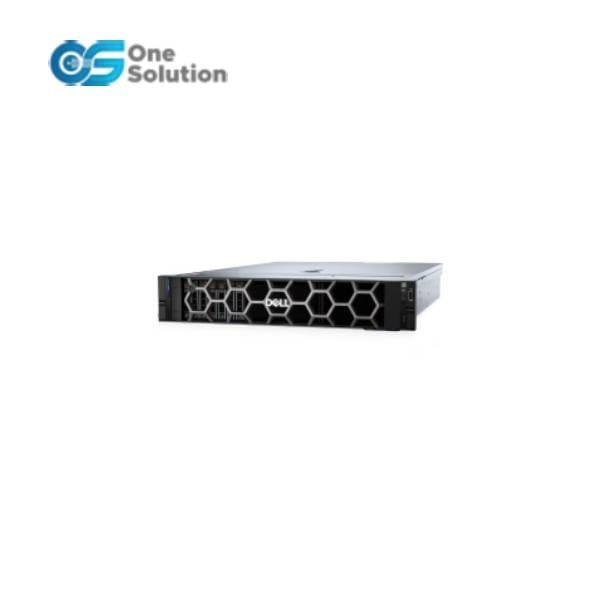

Dell PowerEdge R760xs
The Dell PowerEdge R760xs offers
compelling performance in a right-sized
system with the latest PCIe Gen 5
bandwidth and large storage capability
to support:
• Virtual Desktop Infrastructure (VDI)
• Virtual Machines (VMs)
• Software-Defined Storage NodeBuy the performance and flexibility you need
The new Dell PowerEdge R760xs is a 2U, two-socket rack server. Buy the best fit in scalable performance and large
storage capability with this purpose-built 2U system. Focused on delivering the latest technology to power the most
popular applications and workloads used by businesses today, including virtual desktop infrastructure (VDI), virtual
machines (VMs), and software-defined storage (SDS). All delivered in a thoughtfully crafted platform that will provide
balanced compute that fits in your current infrastructure.

PowerEdge R760xs Specification

PowerEdge R760xs Specification
Processor	Up to 2 x 5th generation Intel® Xeon® Scalable processors with up to 28 cores and 4th generation Intel® Xeon® Scalable processors with up to 32 cores per processor
Operating System	Microsoft^® Windows Server^® with Hyper-V RedHat^® Enterprise Linux SUSE^® Linux Enterprise Server VMware^® vSAN/ESXi^® Canonical^® Ubuntu^® Server LTS
Memory (RAM)	DIMM Speed Up to 5200 MT/sMemory Type RDIMMMemory Module Slots 16 DDR5 DIMM slots Maximum RAM 1.5 TB
Storage	Front Bay Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 160 TB Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 121.6 TB Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) + 8 x 2.5-inch NVMe (HDD/SSD) max 244.48 TBRear Bay Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
Storage Controllers	Internal Controllers PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355iExternal Controllers HBA355eSoftware RAID S160 Internal Boot Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs USB
Power Supplies	1800 W Titanium 200—240 VAC or 240 VDC, hot swap redundant 1400 W Titanium 100—240 VAC or 240 VDC, hot swap redundant 1400 W Platinum 100—240 VAC or 240 VDC, hot swap redundant 1400 W Titanium 277 VAC or HVDC (HVDC stands for High-Voltage DC, with 336V DC), hot swap redundant 1100 W Titanium 100—240 VAC or 240 VDC, hot swap redundant 1100 W -(48V — 60V) DC, hot swap redundant 800 W Platinum 100—240 VAC or 240 VDC, hot swap redundant 700 W Titanium 200—240 VAC or 240 VDC, hot swap redundant 600 W Platinum 100—240 VAC or 240 VDC, hot swap redundantFans Standard (STD) fans, High performance SLVR fans or High performance GOLD fans Up to 6 hot swappable fans
Ports	Network Options 2 x 1GbE LOM card (optional) 1 x OCP card 3.0 (optional) Note: The system allows either LOM card or an OCP card to be installed in the system.Front Ports 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGARear Ports 1 x Dedicated iDRAC Ethernet port 1 x USB 2.0 1 x USB 3.0 1 x Serial (optional) 1 x VGA Internal Ports 1 x USB 3.0 (optional)
Slots	PCIe 1 CPU configuration: Up to 2 PCIe slots (1 x16 Gen4, 1 x8 Gen4) or up to 4 PCIe slots (1 x16 Gen4, 2 x8 Gen5, 1 x8 Gen4) 2 CPU configuration: Up to 4 PCIe slots (3 x16 Gen4, 1 x8 Gen4) or up to 4 PCIe slots (1 x16 Gen4, 2 x8 Gen5, 1 x8 Gen4) or up to 6 PCIe slots (3 x16 Gen4, 1 x8 Gen4, 2 x16 Gen5)Video 1 x VGA
Bezel	Optional LCD bezel or security bezel
Form Factor	2U rack server
Dimensions and Weight	Height 3.41 inches (86.8 mm)Width 18.97 inches (482 mm)Depth 27.85 inches (707.78 mm) – without bezel 28.4 inches (721.62 mm) – with bezel Weight Max 63.0 lbs. (28.6 kg)
Rack Support	ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks ReadyRails static rails for 4-post and 2-post racks

Dell PowerEdge R760 2-Way 2U 12-Bay 3.5-inch 16th Generation Rack Server

Jefferson — Fri, 31 Jan 2025 09:04:27 +0000

Description

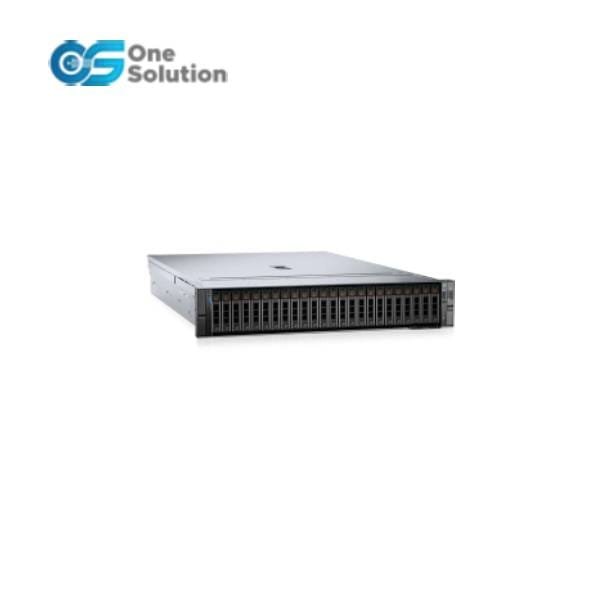

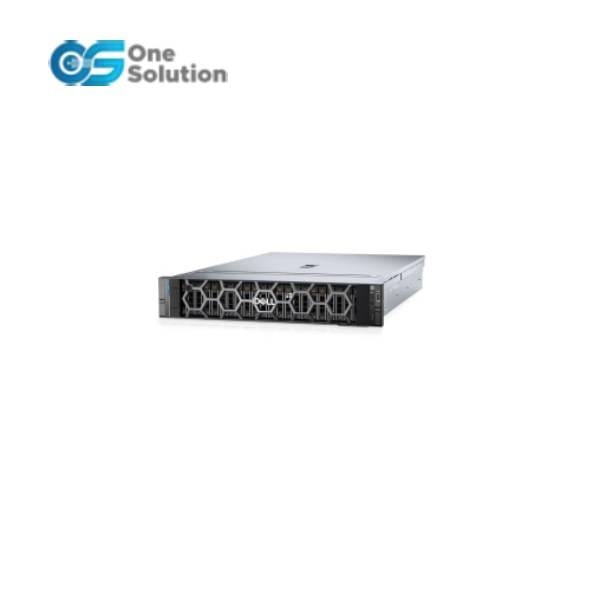

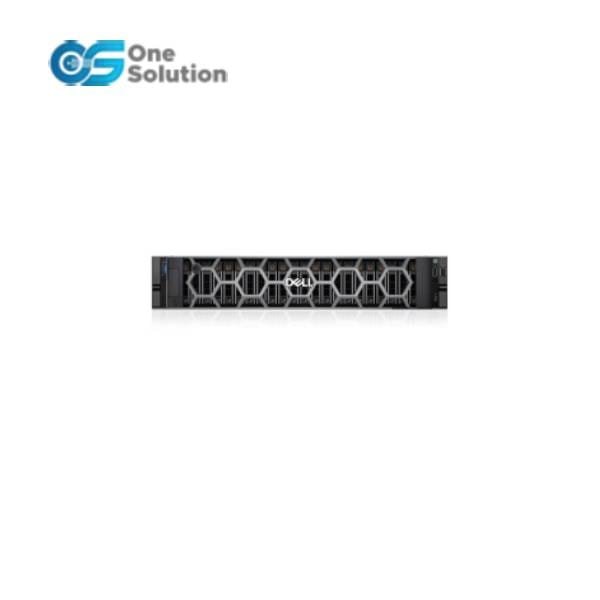

Dell PowerEdge R760
The Dell PowerEdge R760 offers
powerful performance in a purposebuilt, cyber resilient, mainstream server.
Ideal for:
• Mixed Workload Standardization
• Database and Analytics
• Virtual Desktop InfrastructureMax Performance
• Add up to two 4th Generation Intel Xeon Scalable or Intel Xeon Max processors with up to 56 cores or two
5th Generation Intel Xeon Scalable processors with up to 64 cores for faster and more accurate processing
performance.
• Accelerate in-memory workloads with up to 32 DDR5 RDIMMS up to 4800 MT/sec for 1DPC when using 4th Gen
Intel Xeon Scalable processors of 32 DDR5 RDIMMS up to 5600 MT/sec for 1DPC when using 5th Gen Intel Xeon
Scalable processors.
• Support for GPUs including 2 x double-wide or 6 x single-wide for workloads requiring acceleration.

Air cooled at peak performance
• New Smart Flow chassis optimizes airflow to support the highest core count CPUs in an air-cooled environment
within the current IT infrastructure.
• Support for up to 16 x 2.5” drives and 2 x 350 watt processors.

PowerEdge R760 Specification

PowerEdge R760 Specification
Processor	Up to 2 x 5th Generation Intel® Xeon Scalable processors with up to 64 cores per processor
Operating System	Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V RedHat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
Memory (RAM)	DIMM Speed Up to 5600 MT/s on the 5th Generation Intel® Xeon Scalable processorsMemory Type RDIMMMemory Module Slots 32 DDR5 DIMM slots Maximum RAM RDIMM 8 TB
Storage	Front Bay Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB Up to 16 x EDSFF E3.S Gen5 NVMe (SSD) max 122.88 TB Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TBMid Bay N/A Rear Bay Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB Up to 4 x EDSFF E3.S Gen5 NVMe (SSD) max 30.72 TB
Storage Controllers	Internal Controllers PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355iExternal Controllers HBA355e, PERC H965e Software RAID S160 Internal Boot Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs USB
Power Supplies	Power Supplies 3200 W Titanium 277 VAC or 336 HVDC, hot swap redundant 2800 W Titanium 200—240 HLAC or 240 HVDC, hot swap redundant 2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant 1800 W Titanium 200—240 HLAC or 240 HVDC, hot swap redundant 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant 1400 W Titanium 277 VAC or 336 HVDC, hot swap redundant 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant 1100 W -(48—60) VDC, hot swap redundant 800 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant 700 W Titanium 200—240 HLAC or 240 HVDC, hot swap redundant
Ports	Network Options 2 x 1GbE LOM card (optional) 1 x OCP card 3.0 (optional) Note: The system allows either LOM card or an OCP card or both to be installed in the system.Front Ports 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGA Rear Ports 1 x Dedicated iDRAC Ethernet port 1 x USB 2.0 1 x USB 3.0 1 x Serial (optional) 1 x VGA (optional for Direct Liquid Cooling configuration) Internal Ports 1 x USB 3.0 (optional)
Slots	PCIe 8 PCIe slots: Slot 1: 1 x8 Gen5 or 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length Slot 2: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length or 1 x16 Gen5 Full height, Full length Slot 3: 1 x16 Gen4 Low profile, Half length Slot 4: 1 x8 Gen4 Full height, Half length Slot 5: 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length Slot 6: 1 x8/1 x16 Gen4 Low Profile, Half length Slot 7: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length or 1 x16 Gen5 Full height, Full length Slot 7 SNAPI: 1 x16 Gen5 Full height, Half length Slot 8: 1 x8 Gen5 or 1 x8 Gen4 Full height, Half lengthVideo 1 x VGA
Bezel	Optional LCD bezel or security bezel
Form Factor	2U rack server
Dimensions and Weight	Height 3.41 inches (86.8 mm)Width 18.97 inches (482 mm) Depth 30.39 inches (772.13 mm) with bezel 29.85 inches (758.29 mm) without bezel Weight Max 79.58 lbs. (36.1 kg)
Rack Support	ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks ReadyRails static rails for 4-post and 2-post racks Note: CMA is not supported in Direct Liquid Cooling configuration

Dell PowerEdge R740xd 2-Way 2U 12-Bay 3.5-inch 14th Generation Rack Server

Jefferson — Fri, 31 Jan 2025 08:07:42 +0000

Description

Dell PowerEdge R740xd
• Choose the right
resources to power
your workloads
with NVMe, GPU or
FPGA optionsMaximize performance and capacity
The scalable system architecture behind the R740xd with up to 24 NVMe drives creates the ideal balance between
scalability and performance. The R740xd versatility is highlighted with the ability to mix any drive type to create the
optimum configuration of NVMe, SSD and HDD for either performance, capacity or both. The R740xd is the platform of
choice for software defined storage and is the foundation for ScaleIO, VSAN or the PowerEdge XC.
• Maximize storage performance with up to 24 NVMe drives and ensure application performance scales to meet
demands.
• Free up storage space using internal M.2 SSDs optimized for boot.
• Simplify and accelerate ScaleIO or VMware vSAN deployments with validated, pre-bundled and tailored Ready
Nodes.
• Accelerate workloads with up to 3 double-width 300W GPUs, up to 6 single-width 150W GPUs or up to 4 FPGAs.

PowerEdge R740xd Specification

PowerEdge R740xd Specification
Processor	Up to two 2nd Generation Intel^® Xeon^® Scalable processors with up to 28 cores per processor
Operating System	Canonical® Ubuntu® Server LTS Citrix® Hypervisor ® Microsoft® Windows Server® with Hyper-V Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi®
Memory (RAM)	DIMM Speed Up to 2933MT/sMemory Type RDIMM LRDIMM NVDIMM DCPMM (Intel® Optane DC persistent memory) Memory Module Slots 24 DDR4 DIMM slots (12 NVDIMM or 12 DCPMM only) Supports registered ECC DDR4 DIMMs only Maximum RAM RDIMM 1.53TB LRDIMM 3TB NVDIMM 192GB DCPMM 6.14TB (7.68TB with LRDIMM)
Storage	Front Bays Up to 24 x 2.5” SAS/SSD/NVMe, max 184TB Up to 12 x 3.5” SAS, max 192TBMid Bay Up to 4 x 3.5” SAS, max 64TB Up to 4 x 2.5” SAS/SSD, max 30.72TB Rear Bays Up to 4 x 2.5” SAS/SSD, max 30.72TB Up to 2 x 3.5” SAS, max 32TB
Storage Controllers	Internal Controllers: PERC H330, H730P, H740P, HBA330External Controllers (RAID): H840, 12 Gbps SAS HBA Software RAID: S140 Internal Boot: Boot Optimized Storage Subsystem (BOSS): HWRAID 2 x M.2 SSDs 240GB, 480 GB Internal Dual SD Module
Power Supplies	495W Platinum 750W Platinum 750W Titanium 750W 240VDC* 1100W Platinum 1100W 380VDC* 1600W Platinum 2000W Platinum 2400W Platinum 1100W -48VDC Gold Hot plug power supplies with full redundancy option Up to 6 hot plugs fans with full redundancy
Ports	Network Options 4 x 1GbE 2 x 10GbE + 2 x 1bGE 4 x 10GbE 2 x 25GbEFront Ports 1 x Dedicated iDRAC direct USB 2 x USB 2.0 1 x USB 3.0 (optional) 1 x VGA Rear Ports 1 x Dedicated iDRAC network port 1 x Serial 2 x USB 3.0 1 x VGA
Slots	PCIe 3 PCIe slots: • 1×8 Gen4 (x16 connector) low profile, half length • 1×8 Gen4 (x8 connector) low profile, half length • 1×4 Gen4 (x8 connector) for dedicated PERC only
Bezel	Optional LCD bezel or security bezel
Form Factor	2U rack server
Dimensions and Weight	Height 86.8m (3.4”) Width* 434mm (17.1″) Depth* 737.5mm (29.0″) Weight 33.1kg (73.0lbs.)
Rack Support	ReadyRails sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks).

Dell PowerEdge R660xs 2-Way 2U 4-Bay 3.5-inch 16th Generation Rack Server

Jefferson — Fri, 31 Jan 2025 07:56:56 +0000

Description

Dell PowerEdge R660xs
The Dell PowerEdge R660xs
offers compelling performance in
a purpose-built system with the
latest PCIe Gen 5 bandwidth and
storage to support:
• Virtualization / Cloud
• Scale-Out Database
• High Performance Compute

Buy the performance and density you need
The new Dell PowerEdge R660xs is a 1U, two-socket rack server. Buy the best fit in dense performance with this
purpose-built 1U system. Focused on delivering the latest technology to power the most popular applications and
workloads used by businesses today, including virtualization, scale out-database and high performance compute.
All delivered in a thoughtfully crafted platform that will provide dense compute that fits in your current infrastructure.
Easily configurable
• Add up to two 5th generation Intel® Xeon® Scalable processors with up to 28 cores and 4th generation Intel®
Xeon® Scalable processors with up to 32 cores per socket for faster performance
• Accelerate in-memory workloads with up to 16 DDR5 RDIMMS up to 5200 MT/sec
• Improve data throughput and reduce latency with support up to 5 I/O devices (up to 3 PCIe slots, 1 OCP 3.0
networking slot, and 1 dedicated PERC slot)
• Storage options include up to 4x 3.5” HDDs/SSDs; or up to 10x 2.5” HDDs/SSDs/NVMe

PowerEdge R660xs Specification

PowerEdge R660xs Specification
Processor	Up to 2 x 5th generation Intel^® Xeon^® Scalable processors with up to 28 cores and 4th generation Intel^® Xeon^® Scalable processors with up to 32 cores per processor.
Operating System	Microsoft^® Windows Server^® with Hyper-V RedHat^® Enterprise Linux SUSE^® Linux Enterprise Server VMware^® vSAN/ESXi^® Canonical^® Ubuntu^® Server LTS
Memory (RAM)	DIMM Speed Up to 5200 MT/s Memory Type RDIMM Memory Module Slots 16 DDR5 DIMM slots Maximum RAM 1.5 TB
Storage	Front Bay Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 96 TB Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153.6 TB Rear Bay Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.2 TB Up to 2 x E3.S (Gen5 x NVMe) max 25.6 TB
Storage Controllers	Internal Controllers PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i, HBA465i External Controllers HBA355e Software RAID S160 Internal Boot Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs (cold swap) USB
Power Supplies	Power Supplies 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant 1400 W Titanium 100—240 VAC or 240 VDC, hot swap redundant 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant 1100 W LVDC -48 — (-60) VDC, hot swap redundant 800 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant 700 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant 600 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant Fans Standard (STD) fans, High performance SLVR fans or High performance GOLD fans Up to 7 hot swappable fans
Ports	Network Options 2 x 1GbE LOM card (optional) 1 x OCP card 3.0 (optional) Note: The system allows either LOM card or an OCP card can be installed in the system. Front Ports 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGA Rear Ports 1 x Dedicated iDRAC Ethernet port 1 x USB 2.0 1 x USB 3.0 1 x Serial (optional) 1 x VGA Internal Ports 1 x USB 3.0 (optional)
Slots	PCIe 1 CPU Configuration: Up to 2 PCIe slots (1 x16 Gen4 + 1 x8 Gen5) 2 CPU configuration: Up to 3 PCIe Gen4 slots (1 x16 Gen4 + 2 x8 Gen4) or up to 2 PCIe Gen5 slots (1 x16 Gen5 + 1 x8 Gen5) Video 1 x VGA
Bezel	Optional LCD bezel or security bezel
Form Factor	1U rack server
Dimensions and Weight	Height 1.68 inches (42.8 mm) Width 18.97 inches (482 mm) Depth 28.05 inches (712.95 mm) without bezel 29.85 inches (748.79 mm) with bezel Weight 55.33 lbs (19.45 Kg)
Rack Support	ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks ReadyRails static rails for 4-post and 2-post racks

Dell PowerEdge R660 2-Way 2U 8-Bay 2.5-inch 16th Generation Rack Server

Jefferson — Fri, 31 Jan 2025 07:47:43 +0000

Description

Dell PowerEdge R660
The Dell PowerEdge R660
offers powerful performance in
a purpose-built, cyber resilient,
mainstream server. Ideal for:
• High Density Virtualization
• Dense Database Analytics
• Mixed Workload StandardizationMax Performance
• Add up to two 4th Generation Intel® Xeon® Scalable or Intel® Xeon® Max processors with up to 56 cores or
two 5th Generation Intel Xeon Scalable processors up to 64 cores for faster and more accurate processing
performance.
• Accelerate in-memory workloads with up to 32 DDR5 RDIMMS up to 4800 MT/sec for 1DPC when using 4th Gen
Intel Xeon Scalable processors or 32 DDR5 RDIMMs up to 5600 MT/sec for 1 DPC when using 5th Gen Intel
Xeon Scalable processors.
• Support for GPUs including 3 x single-wide for workloads requiring acceleration.

Gain agility
• Achieve maximum efficiency with multiple chassis designs that tailor to your desired workloads and business
objectives.
• Storage options include up to 8 x 2.5” NVMe/SAS4/SATA, plus up to 10 x 2.5” NVMe/SAS4/SATA,
14/16 x NVME E3.S Gen5.
• Multiple Gen4 and Gen5 riser configurations (up to 3 x PCIe slots) with interchangeable components that
seamlessly integrate to address customer needs over time.

PowerEdge R660 Specification
Processor	Up to 2 x 5th Generation Intel^® Xeon Scalable processors, with up to 64 cores.
Operating System	Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V RedHat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
Memory (RAM)	DIMM Speed Up to 5600 MT/s on the 5th Generation Intel^® Xeon Scalable processorMemory Type RDIMM Memory Module Slots 32 DDR5 DIMM slots Maximum RAM RDIMM 8 TB
Storage	Front Bays Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153.6 TB Up to 14 x E3.S (Gen5 x NVMe) max 179.2 TB Up to 16 x E3.S (Gen5 x NVMe) max 204.8 TBMid Bay NA Rear Bay Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB Up to 2 x E3.S (Gen5 x NVMe) max 25.6 TB
Storage Controllers	Internal Controllers PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355iExternal Controllers HBA355e, PERC H965e Software RAID S160 Internal Boot Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs USB
Power Supplies	Power Supplies 1800W Titanium 200—240 HLAC or 240 HVDC, hot swap redundant 1400W Platinum 100—240 VAC or 240 HVDC, hot swap redundant 1100W Titanium 100—240 VAC or 240 HVDC, hot swap redundant 1100W -48 — -60 VDC, hot swap redundant 800W Platinum 100—240 VAC or 240 HVDC, hot swap redundant 700 W Titanium 200-240 HLAC or 240 HVDC, hot swap redundant 800W -48 — -60 VDC, hot swap redundant 1400W Titanium 277 VAC or 336 HVDC, hot swap redundantFans Up to 4 sets (dual fan module) fans
Ports	Network Options 2 x 1 GbE LOM card (optional) 1 x OCP card 3.0 (optional) Note: The system allows either LOM card or an OCP card or both to be installed in the system.Front Ports 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGA Rear Ports 1 x Dedicated iDRAC Ethernet port 1 x USB 2.0 1 x USB 3.0 1 x Serial (optional) 1 x VGA (optional for Direct Liquid Cooling configuration) Internal Ports 1 x USB 3.0 (optional)
Slots	PCIe 3 PCIe slots: Slot 1 : 1 x16 Gen5 Full height, 3/4 length, Half length or 1 x8/ 1 x16 Gen 5 or 1 x16 Gen 4 Low profile, Half length Slot 2 : 1 x16 Gen5 Full height, 3/4 length, Half length or 1 x16 Gen 5 or 1 x16 Gen 4 Low profile, Half length Slot 3 : 1 x8/ 1 x16 Gen 5 or 1 x16 Gen 4 Low profile, Half lengthVideo 1 x VGA
Bezel	Optional LCD bezel or security bezel
Form Factor	1U rack server
Dimensions and Weight	Height 1.68 inches (42.8 mm)Width 18.97 inches (482.0 mm) Depth 32.39 inches (822.88 mm) with bezel 31.85 inches (809.04 mm) without bezel Weight Max 49.62 lbs. (22.51 kg)
Rack Support	ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks ReadyRails static rails for 4-post and 2-post racks Note: CMA is not supported in Direct Liquid Cooling configuration

Dell PowerEdge R650xs 2-Way 1U 8-Bay 2.5-inch 15th Generation Rack Server

Jefferson — Fri, 31 Jan 2025 07:18:23 +0000

Description

Dell PowerEdge R650xs
The Dell EMC PowerEdge R650xs
offers compelling performance, highspeed memory and capacity, I/O
bandwidth and storage to address data
requirements – Ideal for:
• Virtualization/Cloud
• Scale-out Database
• High-Performance ComputeInnovate at scale with challenging and emerging workloads
The new Dell EMC PowerEdge R650xs is a 1U, dual-socket server that’s purpose-built to maximize value with
distinctive feature sets for scale-out environments. With it, you can:
• Add additional power and cores: Up to two 3rd generation Intel® Xeon® Scalable processors, up to 32 cores per
socket
• Accelerate in-memory workloads: Up to 16 DDR4 RDIMMS, 3200 MT/sec
• Improve throughput, reduce latency: Up to 3 PCIe Gen4 slots, OCP 3.0 for network cards, and SNAP I/O support
• Include flexible storage: Up to 4x 3.5” SAS/SATA HDDs or SSDs; or up to 10x 2.5” SAS/SATA HDDs or SSDs,
and 10 NVMe drives
• Enable virtualization, medium density VM or VDI, and High-Performance Compute node workloads

PowerEdge R650xs Specification

PowerEdge R650xs Specification
Processor	Up to two 3rd Generation Intel^® Xeon^® Scalable processors with up to 32 cores per processor Air cooled
Operating System	Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V RedHat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
Memory (RAM)	DIMM Speed Up to 3200 MT/sMemory Type RDIMMMemory Module Slots 16 DDR4 DIMM slots Maximum RAM RDIMM 1 TB
Storage	Front Bays 0 drive bay Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 76.8 TBRear bays Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) max 15.36 TB
Storage Controllers	Internal Controllers PERC H355, H345, PERC H745, PERC H755, PERC H755N, HBA355IExternal Controllers PERC H840, HBA355ESoftware RAID S150 Internal Boot Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB Internal Dual SD Module or Internal USB
Power Supplies	600W Platinum 100–240 VAC or 240 VDC, hot swap redundant 700W Titanium 200–240 VAC or 240 VDC, hot swap redundant 800W Platinum 100–240 VAC or 240 VDC, hot swap redundant 1100W DC/-48–(-60) V 1100W Titanium 100–240 VAC or 240 VDC, hot swap redundant 1400W Platinum 100–240 VAC or 240 VDC, hot swap redundant 1800W Titanium 200–240 VAC or 240 VDC, hot swap redundant
Ports	Network Options 2 x 1 GbE LOM and 1 x OCP 3.0 Front Ports 1 x Dedicated iDRAC Direct micro-USB 1 x USB 2.0 1 x VGA Rear Ports 1 x USB 2.0 1 x USB 3.0 1 x Serial (optional) 2 x Ethernet 1 x VGA Internal Ports 1 x USB 3.0 (optional)
Slots	PCIe Up to 3 x PCIe Gen4 slotsVideo Card 1 x VGA
Bezel	Optional LCD bezel or security bezel
Form Factor	1U rack server
Dimensions and Weight	Height 86.8 mm (3.41 inches)Width 482.0 mm (18.97 inches)Depth 734.95 mm (28.92 inches) – without bezel 748.79 mm (29.47 inches) – with bezel Weight Max 18.62 kg (41.05 lbs.)
Rack Support	ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks. Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks. ReadyRails static rails for 4-post and 2-post racks.

Dell PowerEdge R240 1-Way 1U 4-Bay 3.5-inch 14th Generation Rack Server

Jefferson — Fri, 31 Jan 2025 06:57:58 +0000

Description

Dell PowerEdge R240
• Improved performance due
to 100% more cores
• Scale with 17% more storage
capacity
• Protect your server from malicious
malware with iDRAC9 Enterprise
Server Lockdown modeDesigned for budget-conscious businesses
The Dell EMC PowerEdge R240 designed for dense environments is the ideal solution for budget-conscious businesses.
The R240 offers features to support your demanding and growing business needs.
• Accelerate your business with improved performance due to 100% more cores with Intel® Xeon® E-2200 processors,
11% increase in memory speed, and 20% more PCIe lanes.1
• Harness data growth with up to 4 x 3.5” cabled hard drives.
• Manage operational costs with Multi-Vector cooling which automatically calculates and delivers the proper airflow
needed for optimal cooling.

PowerEdge R240 Specification

PowerEdge R240 Specification
Processor	1 processor from the following: Intel® Xeon® E-2200 product family, Intel Pentium®, Intel Core i3®, Intel Celeron®
Operating System	Citrix® XenServer® Microsoft® Windows Server® with Hyper-V (2016 and 2019) Red Hat® Enterprise Linux Ubuntu® Server LTS SUSE® Linux Enterprise Server VMware® ESXi
Memory (RAM)	4 x DDR4 DIMM slots, Supports UDIMM, up to 2666MT/s, 64GB Max. Supports registered ECC
Storage	Up to 4 x 3.5 cabled SATA, SAS (optional) or SSD* Up to 4 x 3.5 or 2.5 hot-plug SATA, SAS (optional) or SSD* *available in the hot-plug configuration
Storage Controllers	Internal controllers: PERC H730P, H330, HBA330 Software RAID: PERC S140 External controllers: 12Gbps SAS HBA
Power Supplies	Single 250W (Bronze) or 450W (Platinum) power supply
Ports	Networking Options: 2 x 1GbE LOM Network Interface Controller (NIC) ports Front ports: 1x USB 2.0, 1 x IDRAC micro USB 2.0 management port Rear ports: 2 x USB 3.0, VGA, serial connector
Slots	2 x PCIe Gen 3.0 slots: • One x8 slot low-profile, half-length with x4 slot width • One x16 slot low-p
Bezel	Optional security bezel
Form Factor	1U rack server
Dimensions and Weight	Chassis width: 434.00mm (17.08 in) Chassis depth: 573.596mm (22.58 in) (3.5” HDD config) Note: These dimensions do not include: bezel, redundant PSU Chassis weight: 12.2 kg (26.89 lb.)
Rack Support	ReadyRails static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded and 2-post (Telco) racks

Dell PowerEdge T360 1-Way 3U 8-Bay 3.5-inch 16th Generation Tower Server

Jefferson — Fri, 31 Jan 2025 06:45:46 +0000

Description

Dell PowerEdge T360
The Dell PowerEdge T360 offers
streamlined productivity, high-speed
memory and capacity, and powerful
compute to address common business
applications. Ideal for:
• Small to Mid sized businesses
• ROBO / Near-edge
• Collaboration and sharing
• Real-time database managementElevate your enterprise to new heights with PowerEdge T360
Powered by the latest Intel® Xeon® E-2400 processors, Dell PowerEdge T360 is an office-friendly tower server
designed for productivity and data intensive applications, making it ideal for your growing business. With 4400/MT
DDR5 and advanced NVMe BOSS-N1, it supports reduced latency and seamless scalability to bring the computing
capability to the next level. Beyond the computing power, the Dell PowerEdge T360 is equipped with energy-efficient
power supply, hot-plug storages, air cooling fans to make it a reliable, responsible and secure choice.

PowerEdge T360 Specification

PowerEdge T360 Specification
Processor	One Intel^® Xeon^® E-2400 series processor with up to eight cores One Intel^® Pentium^®G7400/ G7400T processor with up to two cores
Operating System	Canonical^® Ubuntu^® Server LTS Microsoft^® Windows Server^® with Hyper-V RedHat^® Enterprise Linux SUSE^® Linux Enterprise Server VMware^® ESXi^®
Memory (RAM)	DIMM Speed Up to 4400 MT/sMemory Type ECC UDIMMMemory Module Slots 4 DDR5 DIMM slots Maximum RAM ECC UDIMM 128 GB
Storage	Front Bay Up to 8 x 3.5-inch SAS/SATA HDD drives, max 128 TB Up to 4 x 3.5-inch SAS/SATA HDD drives, max 64 TB Up to 8 x 2.5-inch SAS/SATA HDD/SSD with 3.5-inch to 2.5-inch adapter, max 61.44 TBMid Bay NARear Bay NA
Storage Controllers	Internal Controllers HBA355i Adapter, PERC H355 Adapter, PERC H755 AdapterExternal Controllers HBA355e AdapterSoftware RAID S160 Internal Boot Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs USB
Power Supplies	450 W Platinum 100-240 V AC, cabled 600 W Platinum 100-240 V AC or 600 W 240 V DC, hot swap redundant 700 W Titanium 200-240 V AC or 700 W 240 V DC, hot swap redundant
Ports	Network Options 2 x 1GbE LOMFront Ports 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 3.2 Gen1Rear Ports 1 x Dedicated iDRAC Ethernet port 3 x USB 2.0 3 x USB 3.2 Gen1 1 x Serial port 1 x VGA port 2 x Ethernet ports Internal Ports 1 x USB 3.2 Gen1
Slots	PCIe Up to four PCIe slots: Slot 1: x8 Gen4 Full height, half length Slot 2: x16 Gen5 Full height, half length Slot 3: x1 Gen4 Full height, half length Slot 4: x8 Gen4 Full height, half lengthVideo 1 x VGAFans Up to two fans
Bezel	Security bezel Optional Filter Bezel
Form Factor	4.5U tower server
Dimensions and Weight	Height 15.06 inches (382.5 mm) (with feet) 14.55 inches(369.5 mm) (without feet)Width 6.89 inches (175.0 mm)Depth 22.82 inches (579.72 mm) with bezel 22.13 inches (562.12 mm) without bezel Weight 55.34 lbs.(25.10 kg) maximum weight
Rack Support	None

Dell PowerEdge T550 2-Way 5U 8-Bay 3.5-inch 15th Generation Tower Server

Jefferson — Fri, 31 Jan 2025 06:36:26 +0000

Description

Dell PowerEdge T550
The Dell EMC PowerEdge T550 is
designed to address enterprise-class
workloads.
Ideal for:
• Business critical workloads
• Database and Analytics
• Virtualization
• AI/ML and inferencingInnovate at scale with an expandable tower server for enterprise workloads
The Dell EMC PowerEdge T550, powered by the 3rd Generation Intel® Xeon® Scalable processors, is an enterpriseclass tower server that offers advanced technologies and support for accelerators. The PowerEdge T550 provides
office-friendly acoustics, ease of management and expandability for growth and performance. Powerful and versatile,
the PowerEdge T550 addresses business critical workloads, cloud infrastructure, and database management as well
as enterprise level requirements for data analysis, virtualization, and AI/ML/inferencing.

PowerEdge T550 Specification

PowerEdge T550 Specification
Processor	Up to two 3rd Generation Intel^® Xeon^® Scalable processors with up to 32 cores per processor
Operating System	Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V RedHat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
Memory (RAM)	DIMM Speed Up to 3200 MT/sMemory Type RDIMM Memory Module Slots 16 DDR4 DIMM slots Maximum RAM RDIMM 1 TB
Storage	Front Bays Up to 8 x 2.5-inch SAS/SATA (HDD) max 120 TB Up to 16 x 2.5-inch SAS/SATA (HDD) max 240 TB Up to 24 x 2.5-inch SAS/SATA (HDD) max 360 TB Up to 8 x 3.5-inch SAS/SATA (HDD/SAS) max 120 TB Up to 8 x 3.5-inch SAS/SATA (HDD) + 8 x 2.5-inch NVMe (SSD) max 240 TB
Storage Controllers	Internal Controllers PERC H345, PERC H355, PERC H755, PERC H755N, HBA355iExternal Controllers PERC H840, HBA355e Software RAID S150 Internal Boot Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB Internal Dual SD Module or USB
Power Supplies	600W Platinum 100–240 VAC or 240 VDC, hot swap redundant 700W Titanium 200–240 VAC or 240 VDC, hot swap redundant 800W Platinum 100–240 VAC or 240 VDC, hot swap redundant 1100W DC/-48–(-60) V 1100W Titanium 100–240 VAC or 240 VDC, hot swap redundant 1400W Platinum 100–240 VAC or 240 VDC, hot swap redundant 1800W Titanium 200–240 VAC or 240 VDC, hot swap redundant 2400W Platinum 100–240 VAC or 240 VDC, hot swap redundant Hot swap power supplies with full redundancy option
Ports	Network Options 2 x 1GbE LOM and OCP x16 3.0 (optional)Front Ports 1 x Dedicated iDRAC Direct micro-USB (optional) 1 x USB 2.0 1 x USB 3.0 Rear Ports 1 x USB 2.0 1 x iDRAC ethernet port 1 x USB 3.0 1 x Serial (optional) 1 x VGA Internal Ports 1 x USB 3.0 (optional)
Slots	PCIe 5 x PCIe Gen4 slots + 1 x PCIe Gen3 slot 3 x16 Gen4 (x16 connector) full height, half length 1 x4 Gen3 (x8 connector) full height, half length 2 x16 Gen4 (x16 connector) full height, full length (optional)Video Card 1 x VGA
Bezel	Optional security bezel
Form Factor	5U Tower Server
Dimensions and Weight	Height 459.0 mm (18.07 inches)Width 200.0 mm (7.87 inches) Depth 680.5 mm (26.79 inches) with bezel 663.5 mm (26.12 inches) without bezel Weight Max 44.48 kg (98.06 lbs.)
Rack Support	System is optimized to fit into EIA-310 spec Racks. Dell does not offer specific rails for this platform.

Dell PowerEdge T360 1-Way 3U 8-Bay 3.5-inch 16th Generation Tower Server

Jefferson — Fri, 31 Jan 2025 06:23:46 +0000

Description

PowerEdge T360
The Dell PowerEdge T360 offers
streamlined productivity, high-speed
memory and capacity, and powerful
compute to address common business
applications. Ideal for:

• Small to Mid sized businesses
• ROBO / Near-edge
• Collaboration and sharing
• Real-time database managementElevate your enterprise to new heights with PowerEdge T360
Powered by the latest Intel® Xeon® E-2400 processors, Dell PowerEdge T360 is an office-friendly tower server
designed for productivity and data intensive applications, making it ideal for your growing business. With 4400/MT
DDR5 and advanced NVMe BOSS-N1, it supports reduced latency and seamless scalability to bring the computing
capability to the next level. Beyond the computing power, the Dell PowerEdge T360 is equipped with energy-efficient
power supply, hot-plug storages, air cooling fans to make it a reliable, responsible and secure choice.

PowerEdge T360 Specification

PowerEdge T360 Specification
Processor	One Intel^® Xeon^® E-2400 series processor with up to eight cores One Intel^® Pentium^®G7400/ G7400T processor with up to two cores
Operating System	Canonical^® Ubuntu^® Server LTS Microsoft^® Windows Server^® with Hyper-V RedHat^® Enterprise Linux SUSE^® Linux Enterprise Server VMware^® ESXi^®
Memory (RAM)	DIMM Speed Up to 4400 MT/sMemory Type ECC UDIMMMemory Module Slots 4 DDR5 DIMM slots Maximum RAM ECC UDIMM 128 GB
Storage	Front Bay Up to 8 x 3.5-inch SAS/SATA HDD drives, max 128 TB Up to 4 x 3.5-inch SAS/SATA HDD drives, max 64 TB Up to 8 x 2.5-inch SAS/SATA HDD/SSD with 3.5-inch to 2.5-inch adapter, max 61.44 TBMid Bay NARear Bay NA
Storage Controllers	Internal Controllers HBA355i Adapter, PERC H355 Adapter, PERC H755 AdapterExternal Controllers HBA355e AdapterSoftware RAID S160 Internal Boot Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs USB
Power Supplies	450 W Platinum 100-240 V AC, cabled 600 W Platinum 100-240 V AC or 600 W 240 V DC, hot swap redundant 700 W Titanium 200-240 V AC or 700 W 240 V DC, hot swap redundant
Ports	Network Options 2 x 1GbE LOMFront Ports 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 3.2 Gen1Rear Ports 1 x Dedicated iDRAC Ethernet port 3 x USB 2.0 3 x USB 3.2 Gen1 1 x Serial port 1 x VGA port 2 x Ethernet ports Internal Ports 1 x USB 3.2 Gen1
Slots	PCIe Up to four PCIe slots: Slot 1: x8 Gen4 Full height, half length Slot 2: x16 Gen5 Full height, half length Slot 3: x1 Gen4 Full height, half length Slot 4: x8 Gen4 Full height, half lengthVideo 1 x VGAFans Up to two fans
Bezel	Security bezel Optional Filter Bezel
Form Factor	4.5U tower server
Dimensions and Weight	Height 15.06 inches (382.5 mm) (with feet) 14.55 inches(369.5 mm) (without feet)Width 6.89 inches (175.0 mm)Depth 22.82 inches (579.72 mm) with bezel 22.13 inches (562.12 mm) without bezel Weight 55.34 lbs.(25.10 kg) maximum weight
Rack Support	None

Dell – One Solution Hardware Co

Dell PowerEdge R760xs 2-Way 2U 8-Bay 3.5-inch 16th Generation Rack Server

Description

PowerEdge R760xs Specification

PowerEdge R760xs Specification

Dell PowerEdge R760 2-Way 2U 12-Bay 3.5-inch 16th Generation Rack Server

Description

PowerEdge R760 Specification

PowerEdge R760 Specification

Dell PowerEdge R740xd 2-Way 2U 12-Bay 3.5-inch 14th Generation Rack Server

Description

PowerEdge R740xd Specification

PowerEdge R740xd Specification

Dell PowerEdge R660xs 2-Way 2U 4-Bay 3.5-inch 16th Generation Rack Server

Description

PowerEdge R660xs Specification

PowerEdge R660xs Specification

Dell PowerEdge R660 2-Way 2U 8-Bay 2.5-inch 16th Generation Rack Server

Description

PowerEdge R660 Specification

Dell PowerEdge R650xs 2-Way 1U 8-Bay 2.5-inch 15th Generation Rack Server

Description

PowerEdge R650xs Specification

PowerEdge R650xs Specification

Dell PowerEdge R240 1-Way 1U 4-Bay 3.5-inch 14th Generation Rack Server

Description

PowerEdge R240 Specification

PowerEdge R240 Specification

Dell PowerEdge T360 1-Way 3U 8-Bay 3.5-inch 16th Generation Tower Server

Description

PowerEdge T360 Specification

PowerEdge T360 Specification

Dell PowerEdge T550 2-Way 5U 8-Bay 3.5-inch 15th Generation Tower Server

Description

PowerEdge T550 Specification

PowerEdge T550 Specification

Dell PowerEdge T360 1-Way 3U 8-Bay 3.5-inch 16th Generation Tower Server

Description

PowerEdge T360 Specification

PowerEdge T360 Specification
